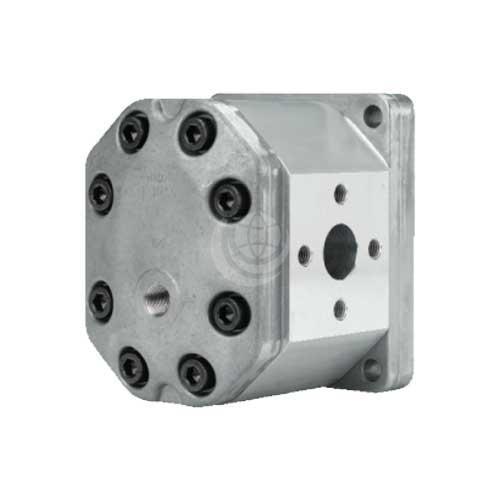

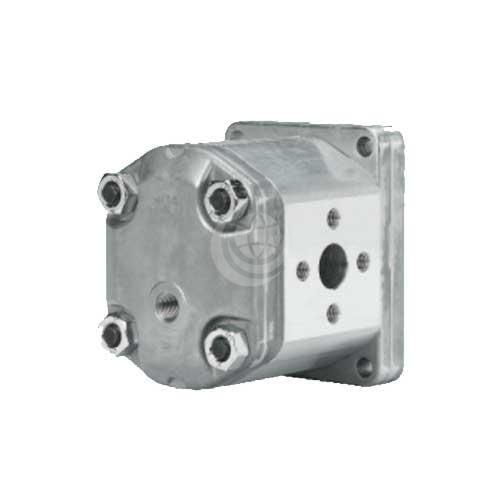

Marzocchi ALM Series Gear Motors


For medium to high pressure rates, Marzocchi ALM series motors are ideal for mobile and industrial applications. Mono-directional and bi-directional configurations are available, together with internal or external drain.

Marzocchi ALM series hydraulic gear motors are available in model codes: ALM1 | ALM2 | ALM3

ALM1 Series: Displacements from 2.8 cc/rev to 11.0 cc/rev; maximum speeds from 2,200 to 5,000 rpm; flow at 1500 rev/minute from 3.9 to 15.7 litres/minute.

ALM2 Series: Displacements from 4.5 cc/rev. to 28.2 cc/rev; maximum speeds ranging from 2,500 to 4,000 rpm; flow at 1500 rev/minute from 6.4 to 40.1 litres/minute.

ALM3 Series: Displacements from 22 cc/rev to 87 cc/rev; maximum speeds from 2,000 to 3,500 rpm; flows at 1500 rev/minute from 31 to 124 litres/minute.

Download the Marzocchi ALM Technical Catalogue >>>

Contact us for further technical details and configuration options.
