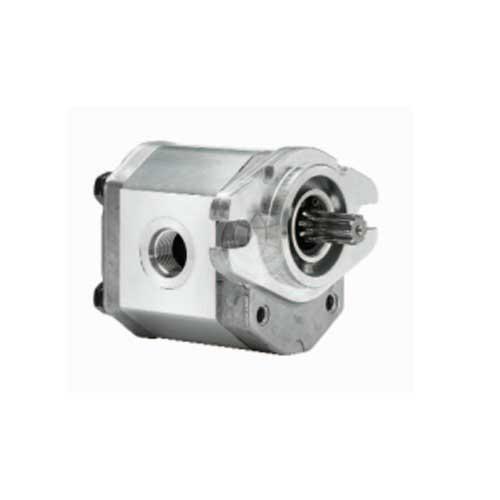

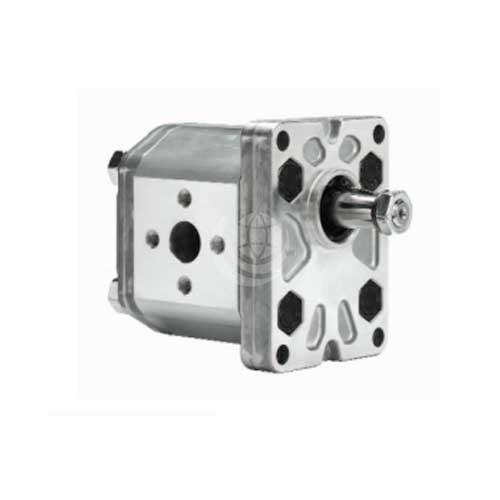

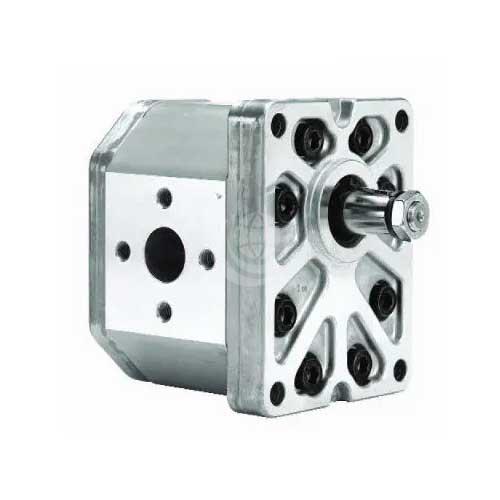

Marzocchi ALP Series Gear Pumps


Marzocchi ALP series gear pumps have a full aluminium configuration. They are able to withstand medium to high pressures and have different versions of flanges (European, German and SAE), porting and shafts. They are available in mono-directional as well as reversible configuration.

The series comprise model codes: ALP 1 | ALP 2 | ALP 3 | ALP4

ALP1 Series: Displacements range from 1.4 to 13.8 cc/rev; maximum speeds range from 2,000 to 6,000 rpm: flow at 1500 rev/minute is 2.0 to 19.7 litres/minute depending on model.

ALP2 Series: Displacements from 4.5 to 35.2 cc/rev; maximum speeds range from 2,500 to 4,000 rpm; flow at 1500 rev/minute from 6.4 to 50.2 litres/minute.

ALP3 Series: Displacements from 20 to 87 cc/rev; maximum speeds from 2,000 to 3,500 rpm; flow at 1500 rev/minute ranges from 29 to 124 litres/minute.

ALP4 Series: Displacements range from 87 to 200 cc/rev; maximum speeds from 2,400 to 2,800 rpm; flow at 1500 rev/minute from 124 to 285 litres/minute depending on model.

Download the Marzocchi ALP Series Technical Catalogue >>>

Contact us for further technical details and configuration options.
