Marzocchi ALPC / GHPC Short Multi Gear Pumps

Marzocchi ALPC / GHPC pumps are a special type of two-stage and three-stage multiple pump with reduced axial length.

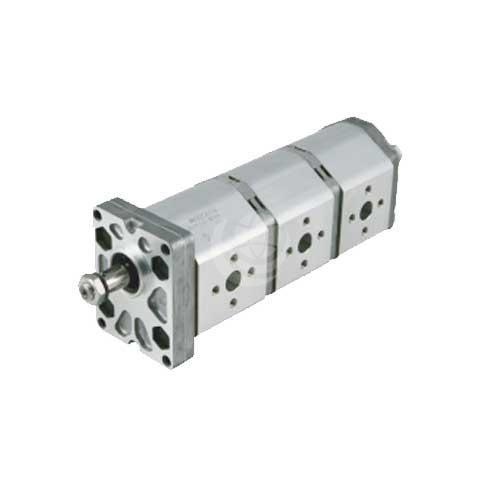

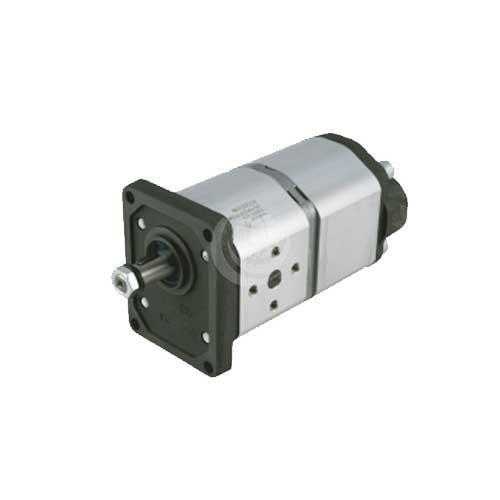

ALPC1 and ALPC2 pumps have a die cast flange and cover, GHPC1 and GHPC2 pumps have a cast iron flange and cover. They are available as a special common inlet version with only one inlet port feeding two or three elements.

Displacements across the series range from 1.4 to 35.2 cc/rev; maximum pressure is up to 270 bar and speeds range from 1000 rpm to 4000 rpm.

Download the Marzocchi ALPC / GHPC Technical Catalogue >>>

Contact us for further technical details and configuration options.
