MP FIltri CS CG CW

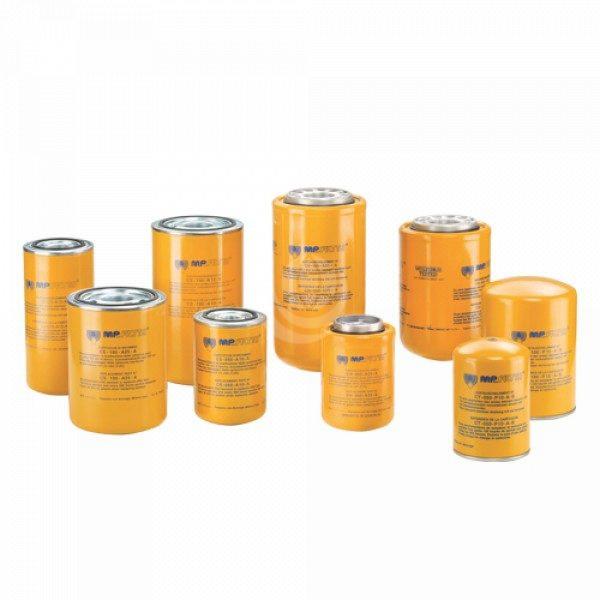

MP Filtri CS CG CW Spin-On Filter Elements

Description

MP Filtri CS CG CW spin on filter elements; working pressure 12 bar (174 psi) and flow rates up to 365 litres/minute.

They have threaded connections: 3/4″ BSP 1″ – 12 UNF to 1 1/4″ BSP 1 1/2″ – 16 UN and are available with 3, 6 or 10 absolute micron ratings.

The MP Filtri CS CG CW range is available as:

  • CS: CS050 | CS070 | CS100 | CS150
  • CG and CW: CG / CW 050 – 070 | CG / CW 100 – 150

The CW series of cartridges removes water from oil while filtering the oil at the same time; water absorbent polymers up to 800 times their own weight provide this major feature.

Contact us for further technical details and configuration options.
