MP Filtri FHB High Pressure Filters

Description

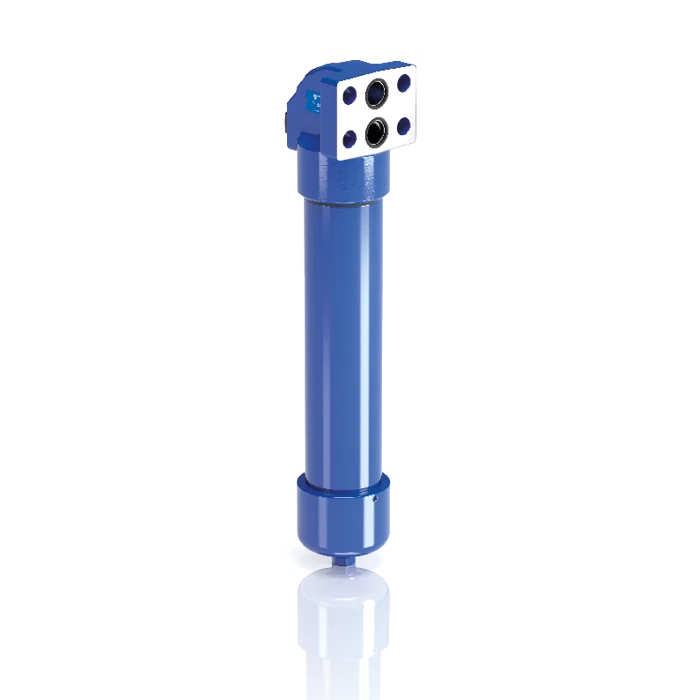

MP Filtri FHB side manifold mounted high pressure filter: working pressure 320 bar (4641 psi), flow rates up to 485 l/min (128 gpm).

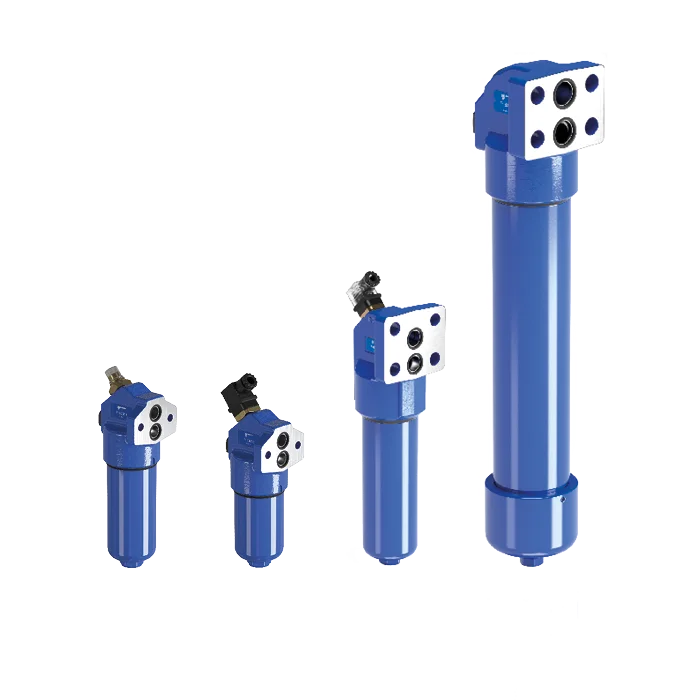

The MP Filtri FHB series comprises: FHB 050 | FHB 065 | FHB 135 | FHB 320

Key features are:

  • Bypass valve opening pressure: 600 kPa (6 bar)
  • Seals: standard NBR, series A | optional FPM, series V
  • Temperature: from -25 °C to +110 °C
  • Manifold mounting
  • FHB filters are provided for vertical mounting

Filter housing materials:

  • Head: phosphatised cast iron
  • Housing: phosphatised steel
  • Bypass valve: steel
  • Check valve: steel

Pressure:

  • Working pressure: 32 MPa (320 bar)
  • Test pressure: 48 MPa (480 bar)
  • Burst pressure: 96 MPa (960 bar)
  • Pulse pressure fatigue test: 1,000000 cycles with pressure from 0 to 32 MPa (320 bar)

Contact us for further technical details and configuration options.
