MP Filtri High Pressure Filters

MP Filtri high pressure filters protect individual valves or the entire hydraulic circuit from contamination.

There are 11 high pressure filters available with operating pressures from 110 bar to 560 bar and a number of mounting configurations:

  • In-line, with threaded and flange mounts
  • Manifold top mounting | side mounting | mounting, to DIN 24340 CETOP R 35 H | threaded/flange mounting in the top extraction filter cartridge version
  • Duplex versions for continuous operation requirements.

The MP Filtri high pressure filter range comprises:

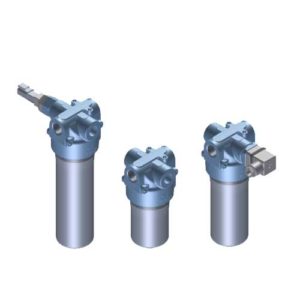

  • FMP039 | In-line filter, working pressure 110 bar (1595 psi), flow rates up to 80 litres/minute, threaded connections 1/2” BSP/NPT/SAE.

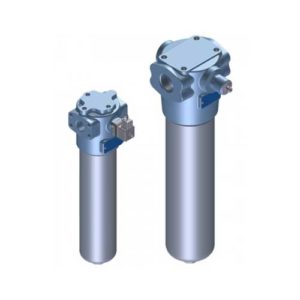

  • FMP | In-line filter, working pressure 320 bar (4641 psi), flow rates up to 475 litres/minute, threaded connections up to 1 1/2” BSP/NPT/SAE and flanged connections up to 1 1/2” SAE 3000 psi.
  • FHP | In-line filter, working pressure 420 bar (6092 psi), flow rates up to 750 litres/minute, threaded connections up to 1 1/2” BSP/NPT/SAE and flanged connections up to 2″ SAE 6000 PSI.

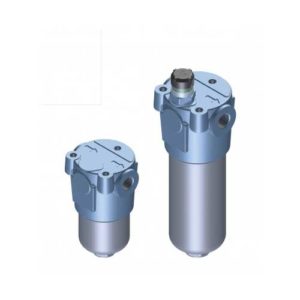

  • FMM | In-line filter, working pressure 420 bar (6092 psi), flow rates up tp 250 litres/minute, female threaded connections up to 1 1/4”

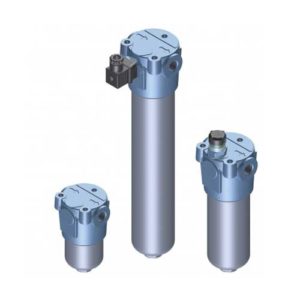

  • FHA051 | FHA 051 In-line filter, working pressure 560 bar (8122 psi), flow rates up to 140 litres/minute, female threaded connections up to 3/4”

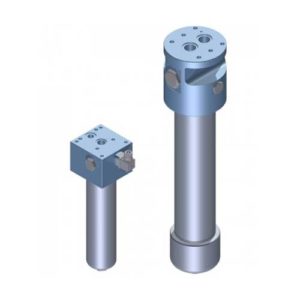

  • FHM Manifold | Manifold mounted filter, working pressure 320 bar (4641 psi), flow rates up to 450 litres/minute, manifold connections

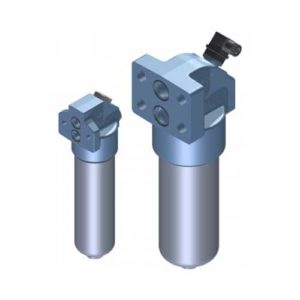

  • FHB Manifold | Manifold mounted filter, working pressure 320 bar (4641 psi), flow rates up to 450 litres/minute, manifold connections

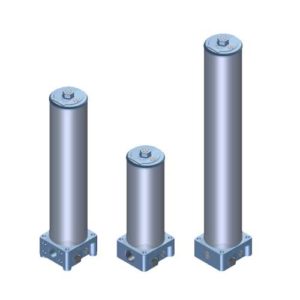

  • FHF325 Manifold | In-line filter, working pressure 350 bar (5076 psi), flow rates up to 500 litres/minute, threaded connections 1 1/2” BSP/NPT/SAE and flanged connections 1 1/2” SAE 6000 psi manifold type
  • FHD Duplex | In-line duplex filter, working pressure 350 bar (5076 psi), flow rates up to 345 litres/minute, threaded connections from 1/2” to 1 1/4” BSP/NPT/SAE and flanged connections 1 1/2” SAE 6000 psi.
