MP Filtri FHM Manifold Mounted High Pressure Filters

MP Filtri FHM manifold mounted high pressure filters: working pressure 320 bar (4641 psi), flow rates up to 450 litres/minute.

FHM filters protect sensitive components in high pressure hydraulic systems in industrial and mobile equipment. They are directly connected to the top of the manifold, through a flanged interface.

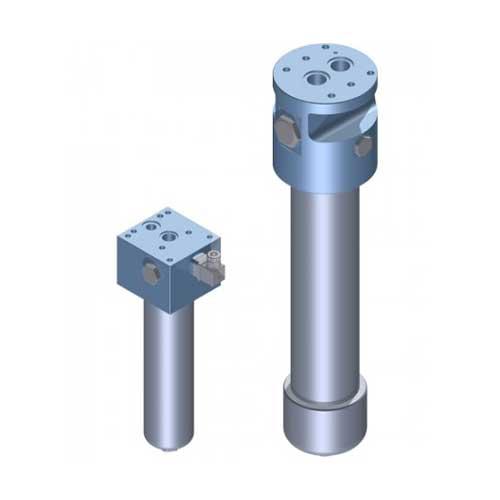

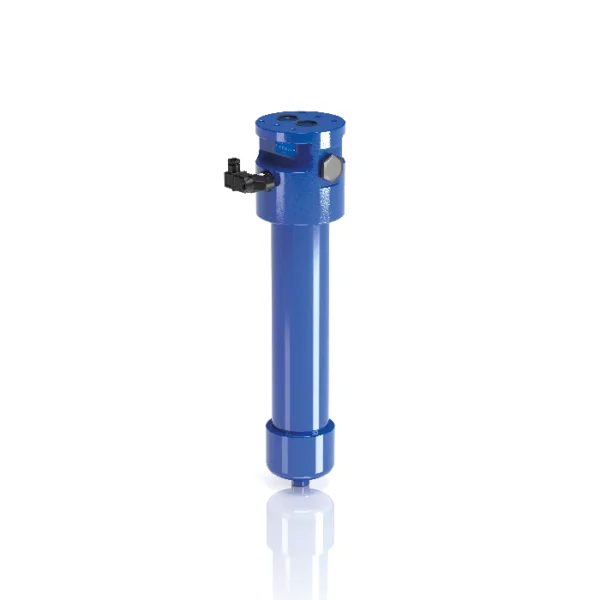

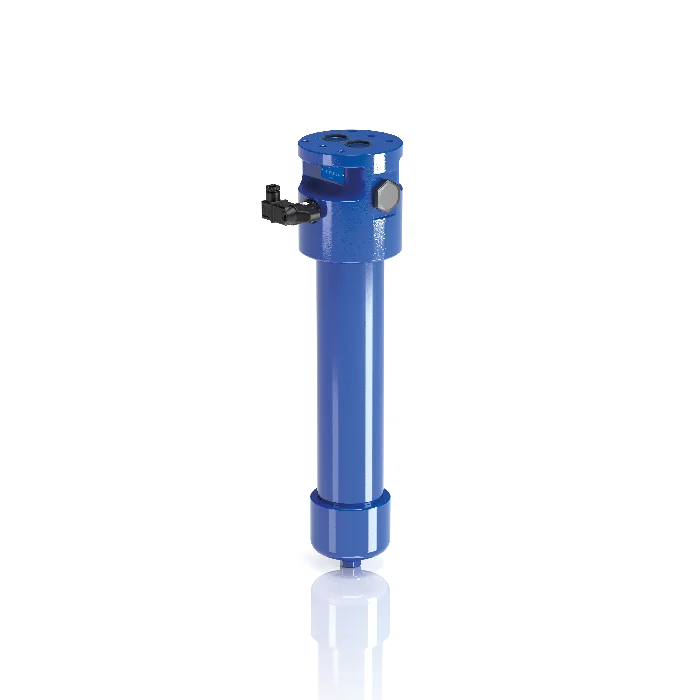

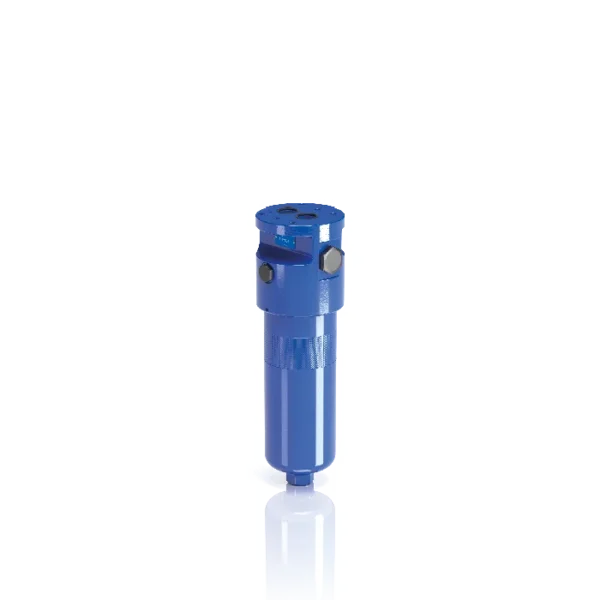

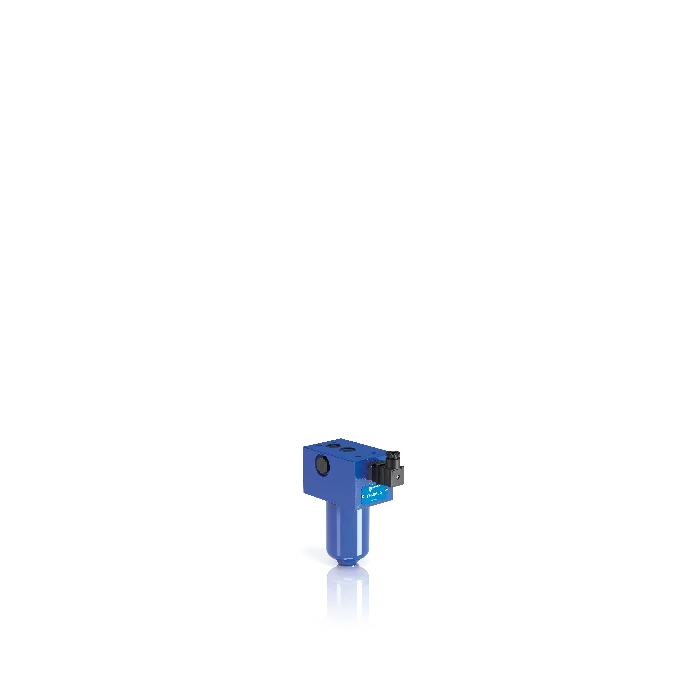

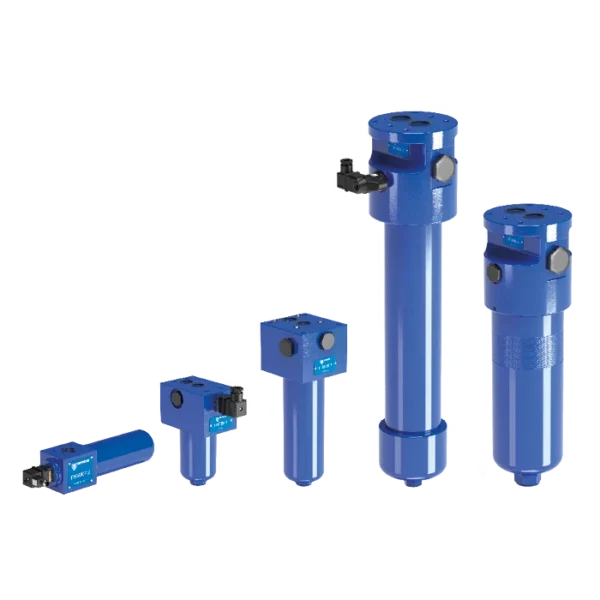

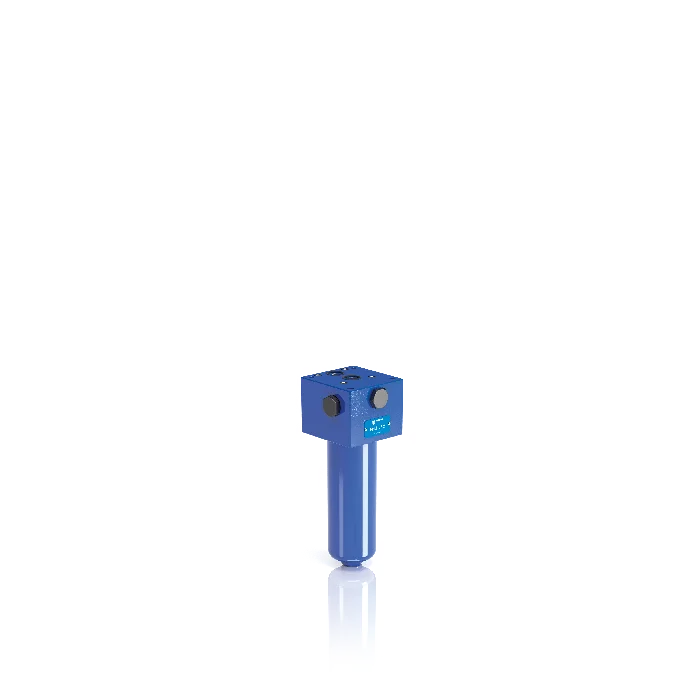

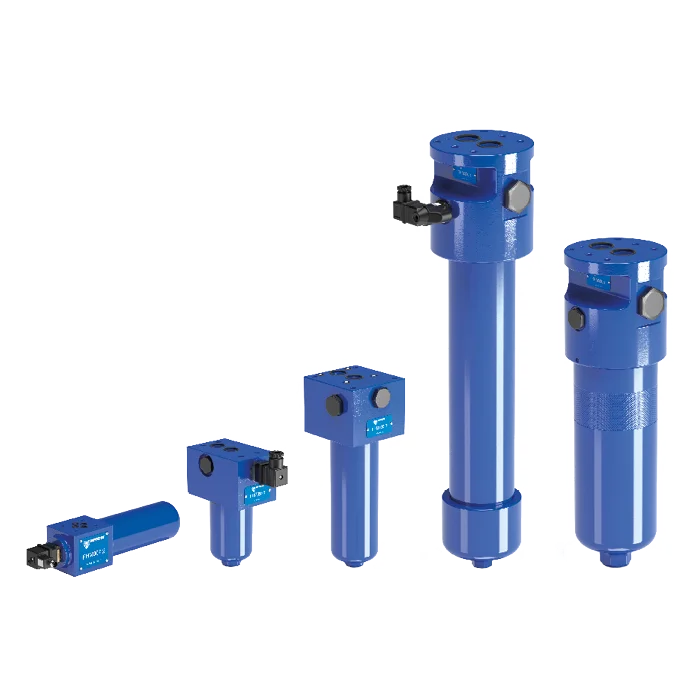

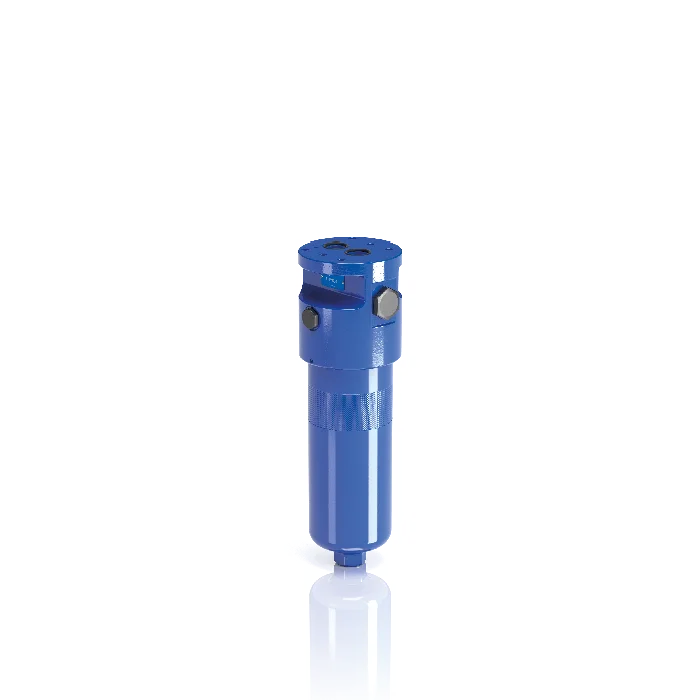

The MP Filtri FHM series comprises: FHM006 | FHM007 | FHM010 | FHM050 | FHM065 | FHM135 | FHM320 | FHM500

Features:

• Manifold mounting; connections up to 30 mm, for a maximum fow rate of 450 litres/minute
• ISO 4401 CETOP 3 and CETOP 5 interface, for direct mounting to CETOP valves
• Fine filtration rating
• Bypass valve, to relieve excessive pressure drop across the filter media; opening pressure 600 kPa (6 bar) ±10%
• Check valve, to protect the system against reverse flow
• Visual, electrical and electronic differential clogging indicators
• Seals: standard NBR, series A | optional FPM, series V
• Temperature: from -25 °C to +110 °C
• Connections: manifold mounting

Filter housing materials:

• Head: phosphatised cast iron: FHM 006-007-010 | phosphatised steel: FHM 050-065-135-320-500
• Housing: phosphatised steel
• Bypass valve: steel
• Check valve: steel

Pressure:

• Test pressure: 48 MPa (480 bar)
• Burst pressure: 96 MPa (960 bar)
• Pulse pressure fatigue test: 1 000 000 cycles, with pressure from 0 to 32 MPa (320 bar)

Contact us for further technical details and configuration options.
