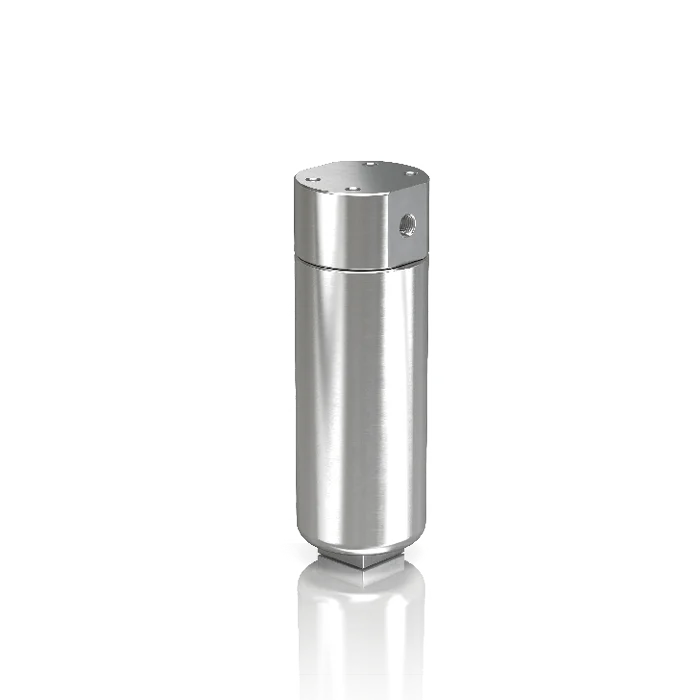

MP Filtri FZX Stainless Steel Filters


MP Filtri FZX stainless steel filters have maximum working pressure of up to 1000 bar (14504psi) and a flow rate of up to 10 litres/minute.

The FZX 011 filter protects components in high pressure hydraulic systems placed in difficult environmental conditions. Common applications include: offshore equipment, water filtration systems and systems with strong or corrosive environmental conditions or fluids.

Features of the MP Filtri FZX (011):

  • Weight 6.5kg
  • Vertical mounting
  • 1/2” female threaded connections, for a maximum flow rate of 10 litres/minute
  • Fine filtration rating
  • Visual, electrical and electronic differential clogging indicators
  • Bypass valve, opening pressure 6 bar ±10%
  • Temperature: from -50 °C to +120
  • Seals: standard NBR, series A (-25 °C to +110 °C) | optional FPM, series V (-20 °C to +120 °C) | optional MFQ series F (-50 °C to +120 °C)

Filter housing materials:

  • Head: AISI 316L
  • Housing: AISI 316L
  • Bypass valve: AISI 316L

Contact us for further technical details and configuration options.
