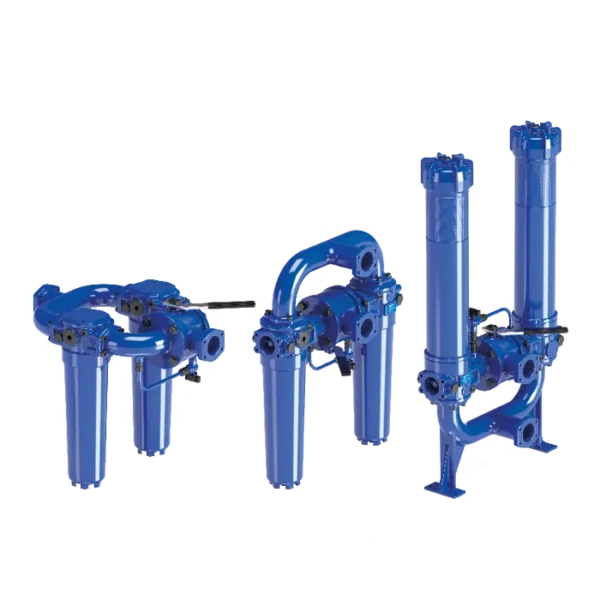

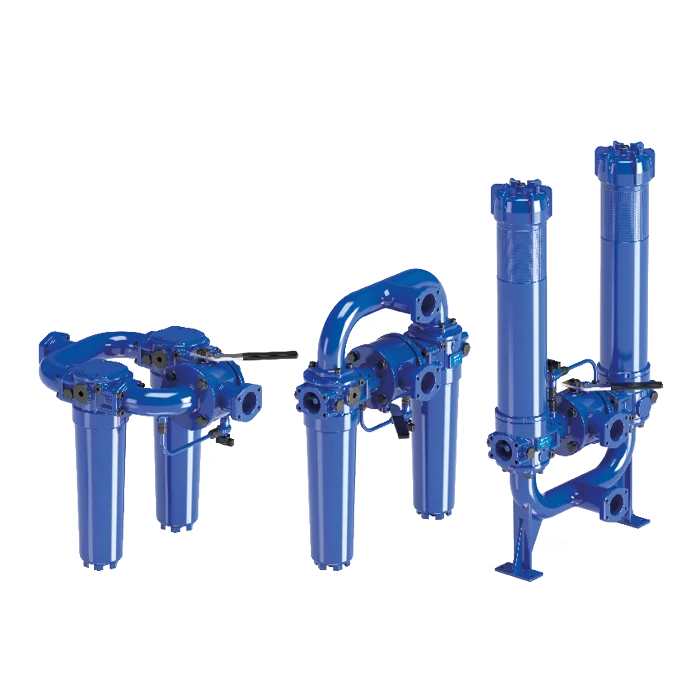

MP Filtri LMD 400-401 431 Low & Medium Pressure Filters


MP Filtri LMD 400 series filters have a working pressure of up to 16 bar and flow rates of up to 590 litres/minute.

LMD 400 filters are versatile, low pressure duplex filters with an integrated changeover function – allowing the filter element to be replaced without shutting the system down. They are therefore particularly suitable for systems where shut-down causes high costs or safety issues.

Features of MP Filtri LMD 400 series features include:

  • Vertical mounting
  • 2 1/2” flanged connections, for a maximum flow rate of 590 litres/minute

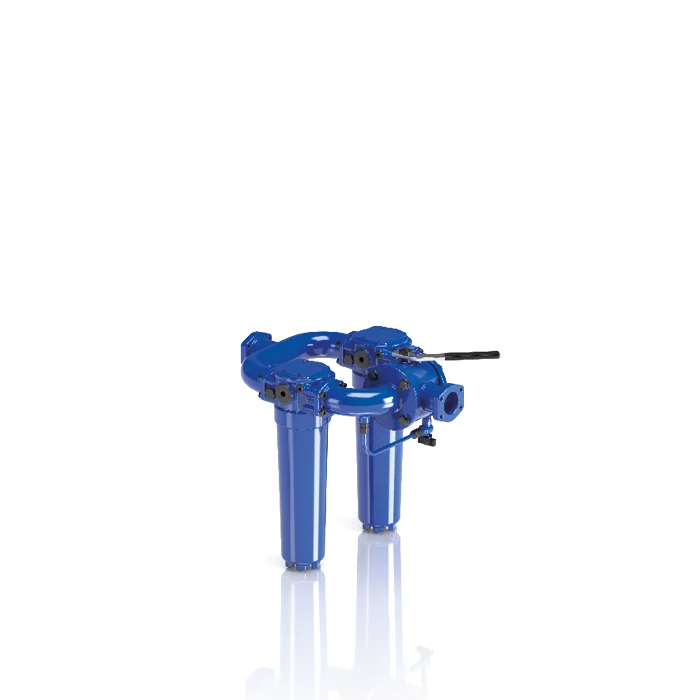

  • LMD 400: in-line connections

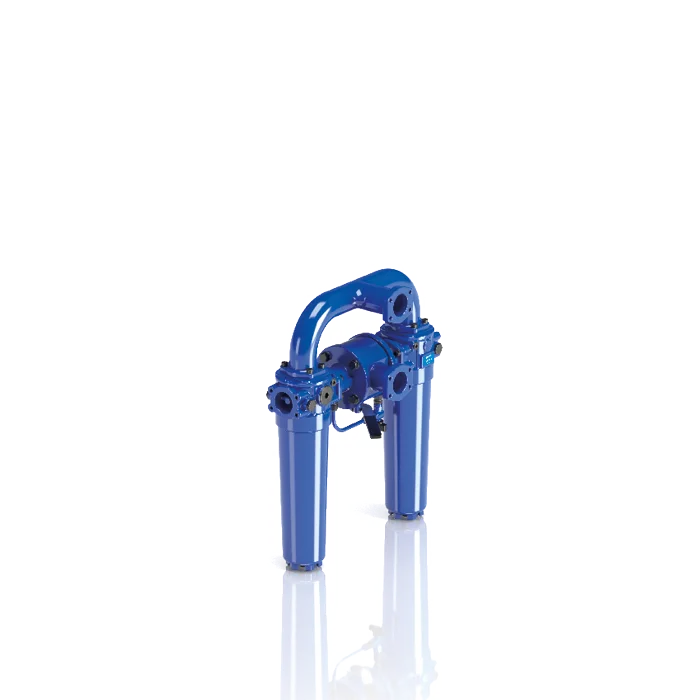

  • LMD 401: in-line connections with compact design
  • LMD 431: in-line connections with compact design and base mounting easing filter element replacement
  • Fine filtration rating
  • Water removal elements, to remove free water from the hydraulic fluid
  • Balancing valve, to equalise the housing pressure before the switch; opening pressure 350 kPa (3.5 bar) ±10%
  • Bypass valve, to relieve excessive pressure drop across the filter media
  • Vent ports, to prevent any air trapped in filter from entering the system
  • Drain ports, to remove the fluid from the housing prior to maintenance
  • Visual, electrical and electronic differential clogging indicators
  • Temperature: from -25° C to +110° C
  • Seals: FPM, series V
  • Test pressure: 2.5 MPa (25 bar)

Filter housing materials:

  • Head: anodised aluminium
  • Housing: anodised aluminium
  • Manifolds: steel – painted black
  • Bypass valve: steel
  • 3-way ball valve: steel housings
  • Stainless steel ball valve: phosphatised steel – stainless steel

Contact us for further technical details and configuration options.
