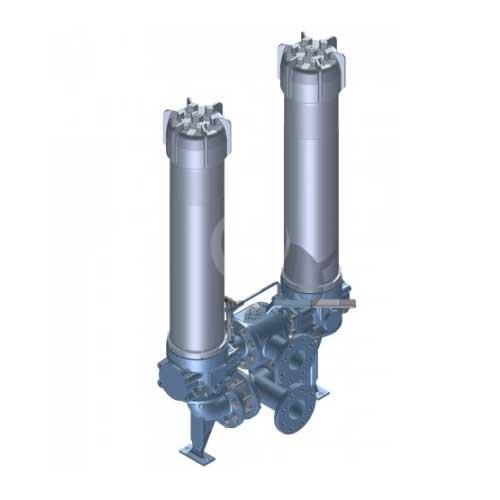

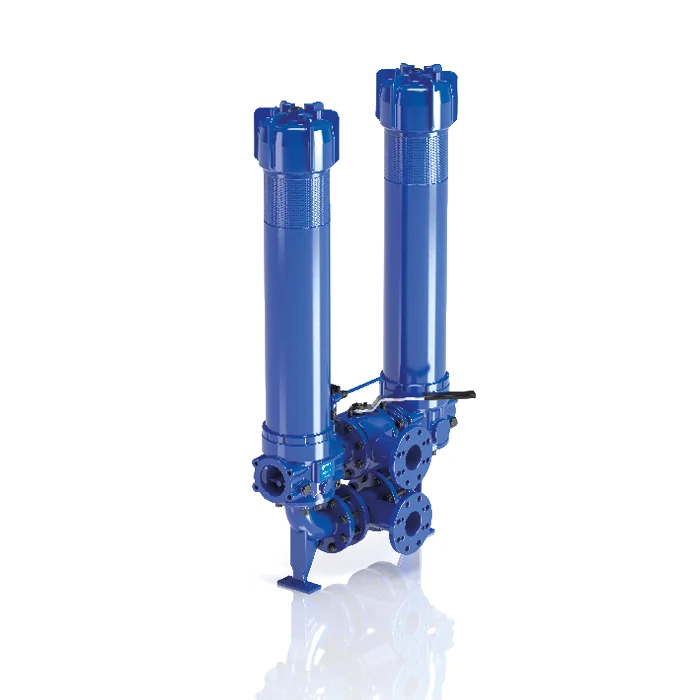

MP Filtri LMD 951 Low & Medium Pressure Filters


MP Filtri LMD 951 filters are in-line duplex filters with working pressure of 16 bar (232 psi) and flow rates up to 1200 litres/minute. They have flanged connections, 2 1/2″, 3″, and 4″ SAE 3000 psi.

Features of MP Filtri LMD 951 include:

  • Vertical mounting
  • Flanged connections up to 4”, for a maximum fow rate of 2400 litres/minute
  • Base-mounting design – easing replacement of the filter element
  • Fine filtration rating
  • Water removal elements, to remove the free water from the hydraulic fluid
  • Bypass valve, to relieve excessive pressure drop across the filter media; opening pressure 350 kPa (3.5 bar) ±10%
  • Drain ports, to remove the fluid from the housing prior the maintenance work
  • Visual, electrical and electronic differential clogging indicators
  • Seals: FPM, series V
  • Connections: LMD 951: in-line inlet/outlet, same side

Test pressure: 45 bar

Temperature: from -25 °C to +110 °C

Filter housing materials:

  • Head: anodised aluminium
  • Housing: anodised aluminium
  • Manifolds: welded – painted black
  • Bypass valve: steel
  • 3-way ball valve: stainless steel body – stainless steel ball
  • Check valve: cast iron body – AISI 304 leaf

Contact us for further technical details and configuration options.
