Description

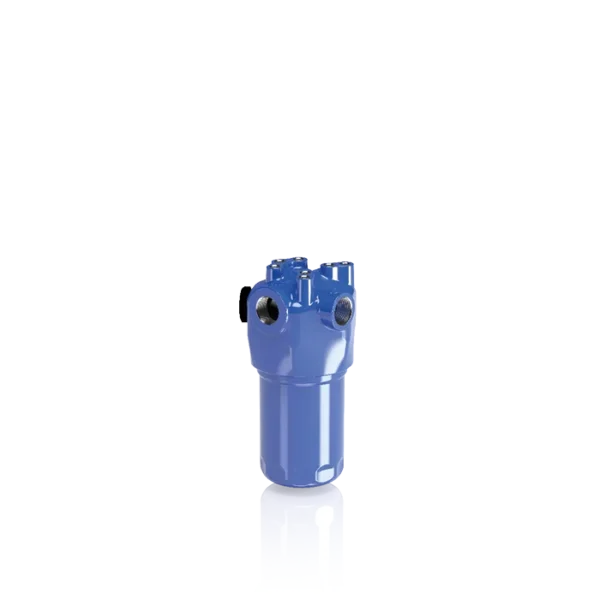

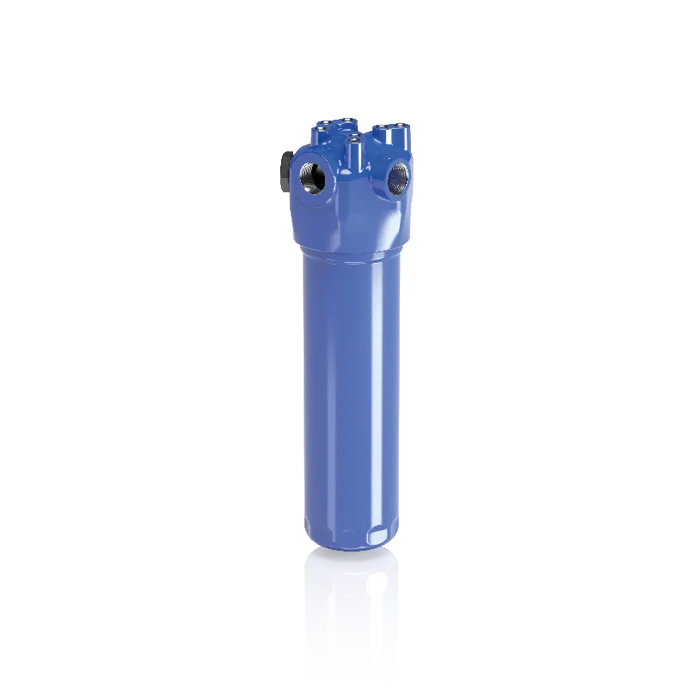

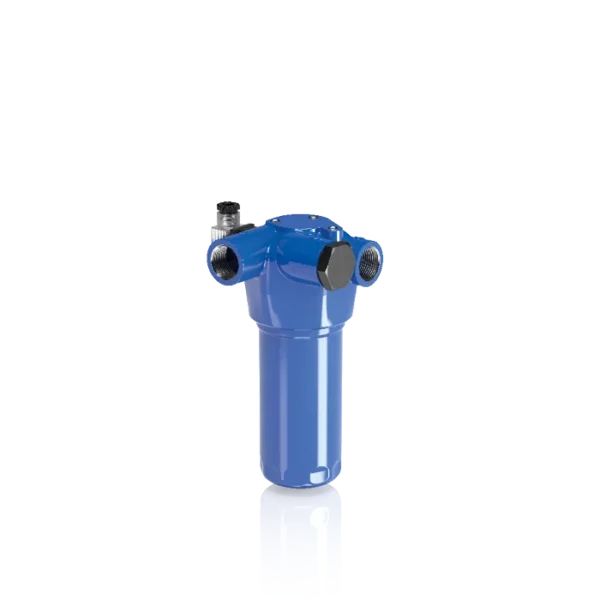

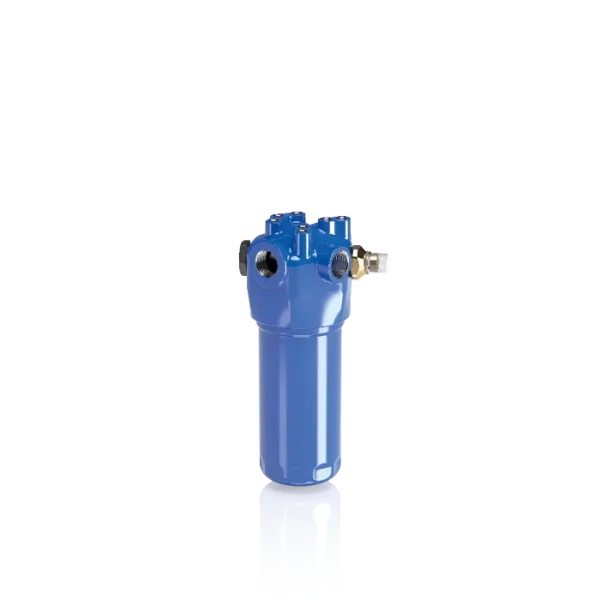

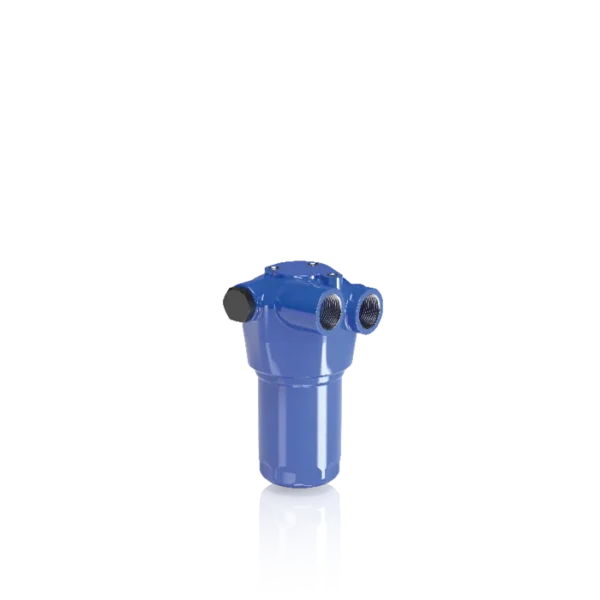

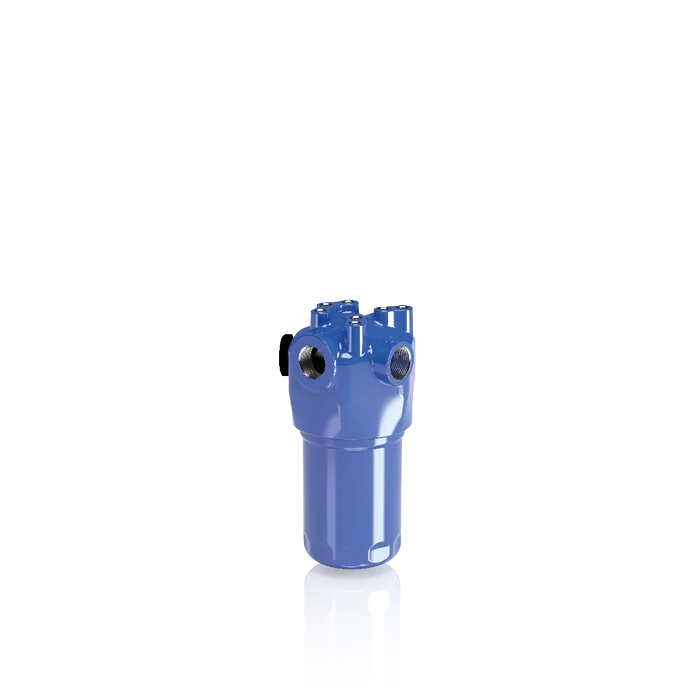

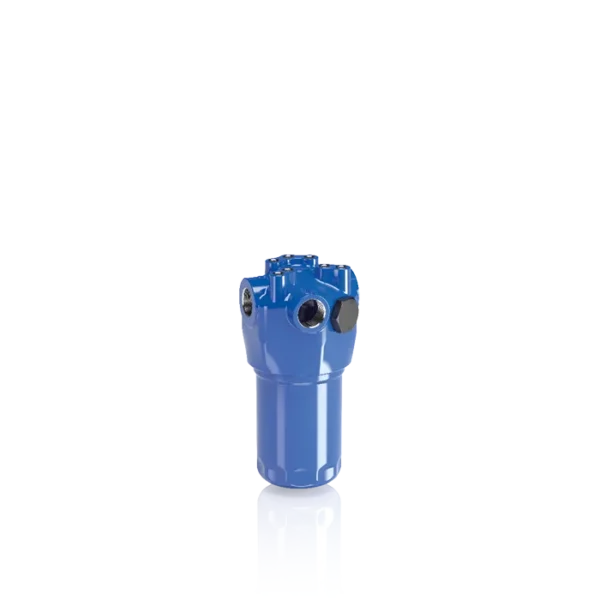

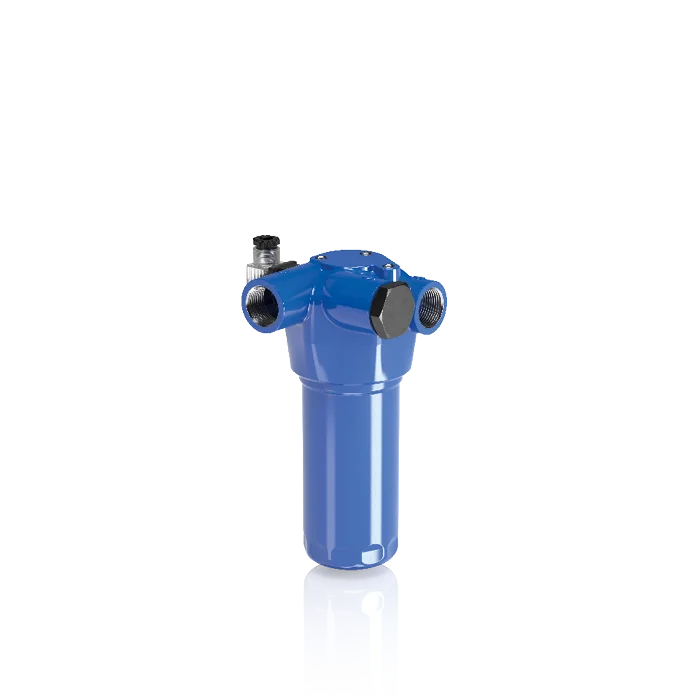

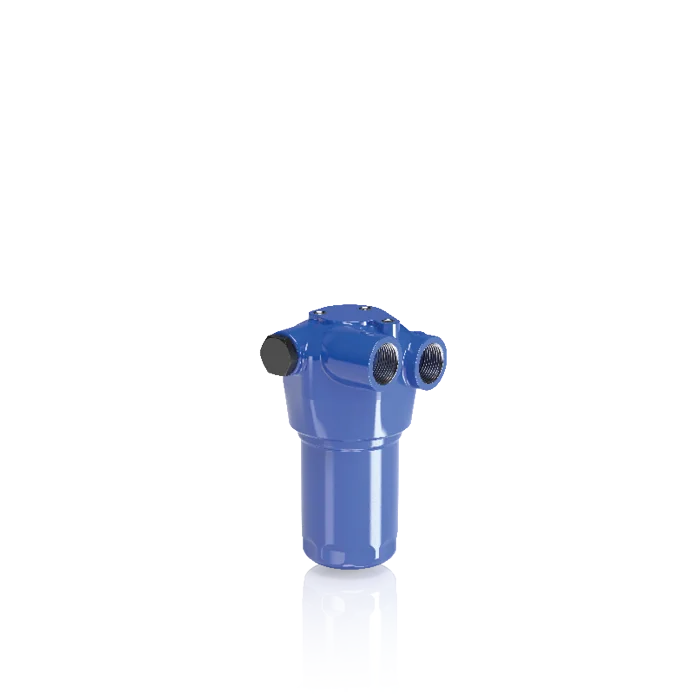

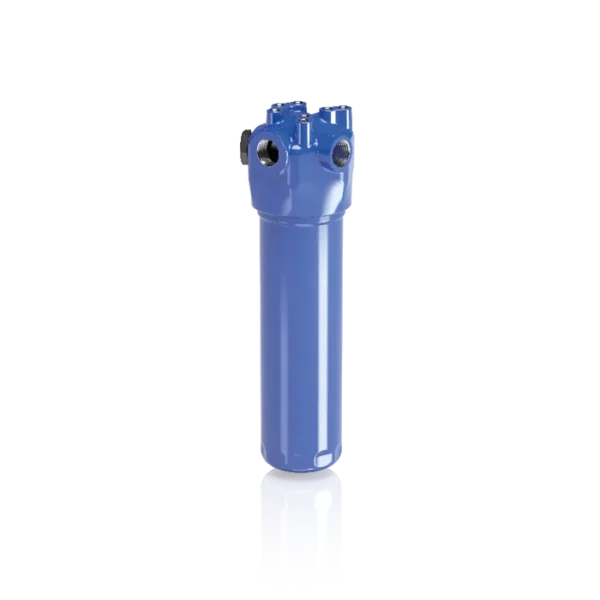

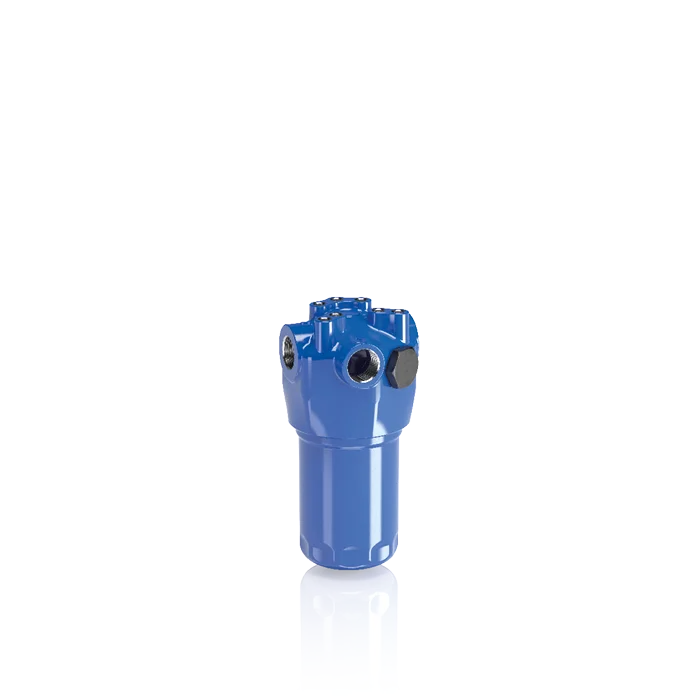

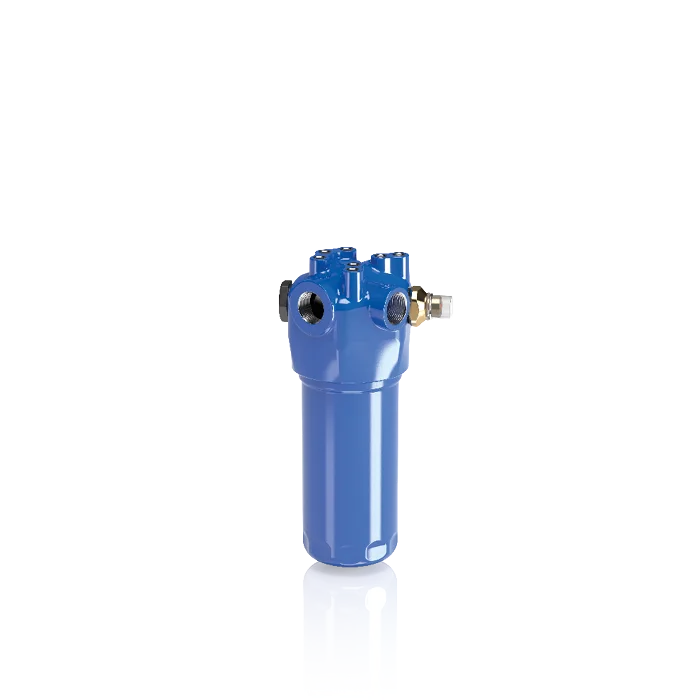

MP Filtri LMP 110 120 123 in-line filters have working pressure of 80 bar (1160 psi), flow rates up to 200 litres/minute and threaded connections 3/4” and 1” BSP/NPT/SAE.

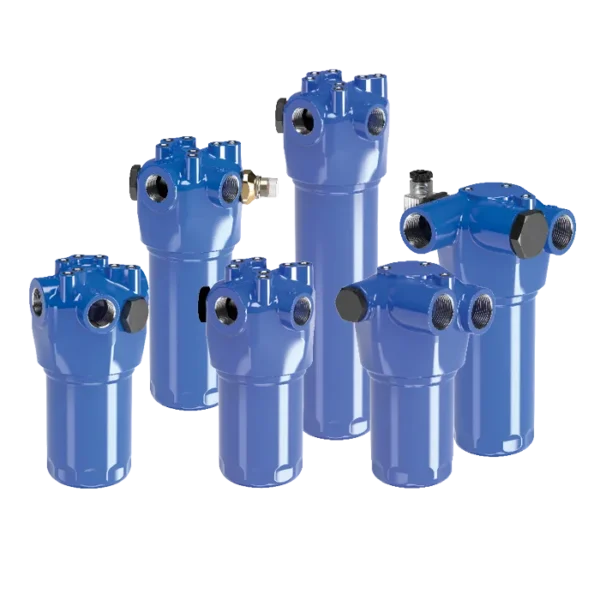

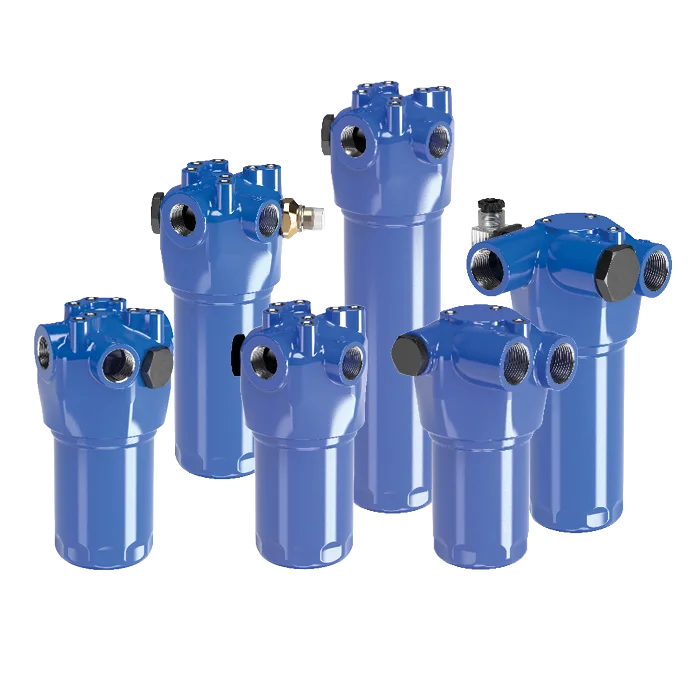

LMP 110 is a range of versatile low pressure filters comprising: LMP 110 | LMP 112 | LMP 116 | LMP 118 | LMP 120 | LMP 122 | LMP 123
Features of MP Filtri LMP 110 series filters include:
- Vertical mounting
- Fine filtration rating
- Bypass valve, to relieve excessive pressure drop across the filter media; opening pressure 350 kPa (3.5 bar) ±10%
- Visual, electrical and electronic differential clogging indicators
- Multiport and multifunction schemes, to meet any type of application.
- LMP112: 3/4” additional input port
- LMP116: 3/4” additional output port
- LMP118: 3/4” bypass port, to send the bypass flow to the reservoir instead of the system
- LMP119: 3/4” relief port, to relieve the input pressure in the filter, protecting the components downstream the filter against back pressure caused by the pressure drop (cold starts)
- LMP120: connections placed in the same side
- LMP122: connections placed in the same side and 1” additional output port
- LMP123: 2 and 3 bar integrated relief valve
- Seals: standard NBR, series A | optional FPM, series V
- Temperature: from -25 °C to +110 °C
Filter housing materials:
- Head: aluminium
- Housing: cataphoresis – painted steel
- Bypass valve: brass – aluminium
Pressure:
- Test pressure: 12 MPa (120 bar)
- Burst pressure: LMP 110: 29 MPa (290 bar) | LMP 120/130: 38 MPa (380 bar)
- Pulse pressure fatigue test: 1,000,000 cycles with pressure from 0 to 8 MPa (80 bar)
Contact us for further technical details and configuration options.
