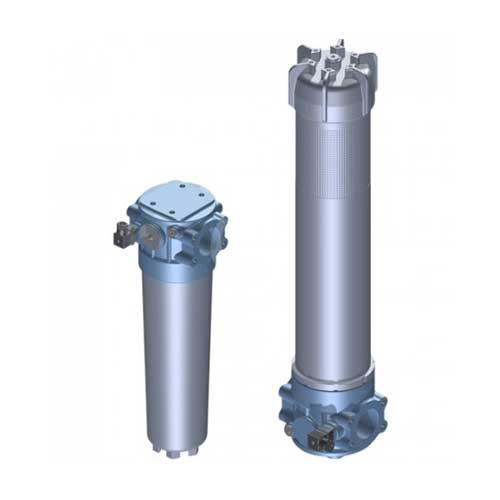

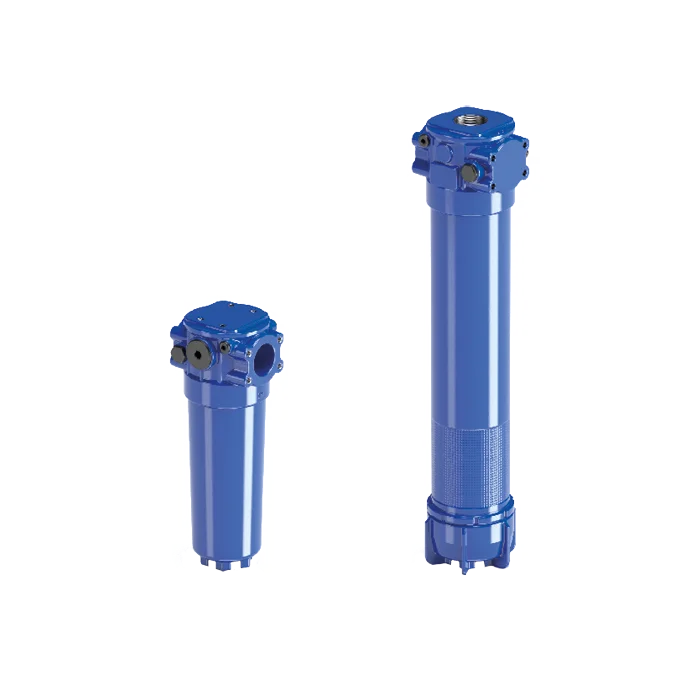

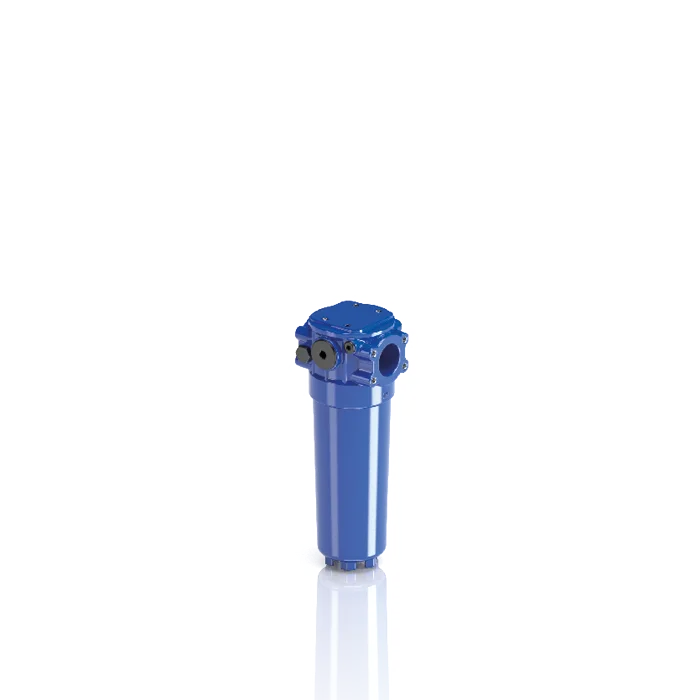

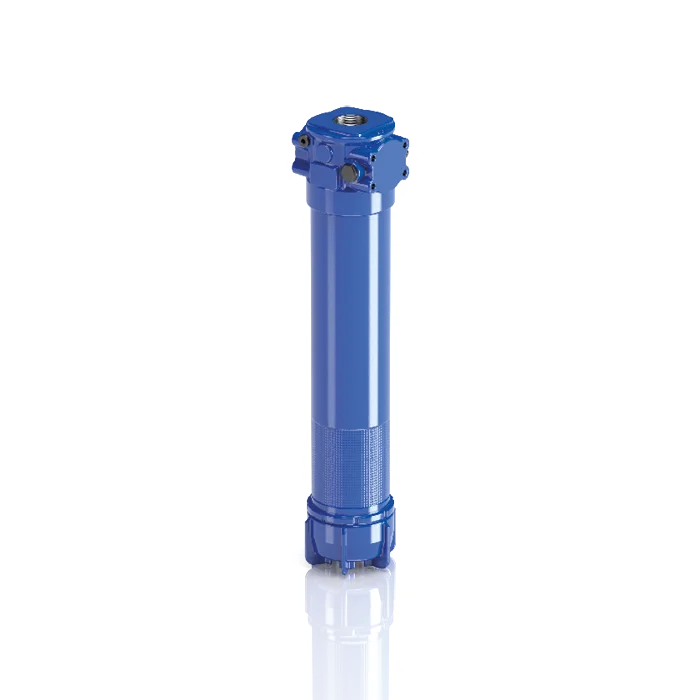

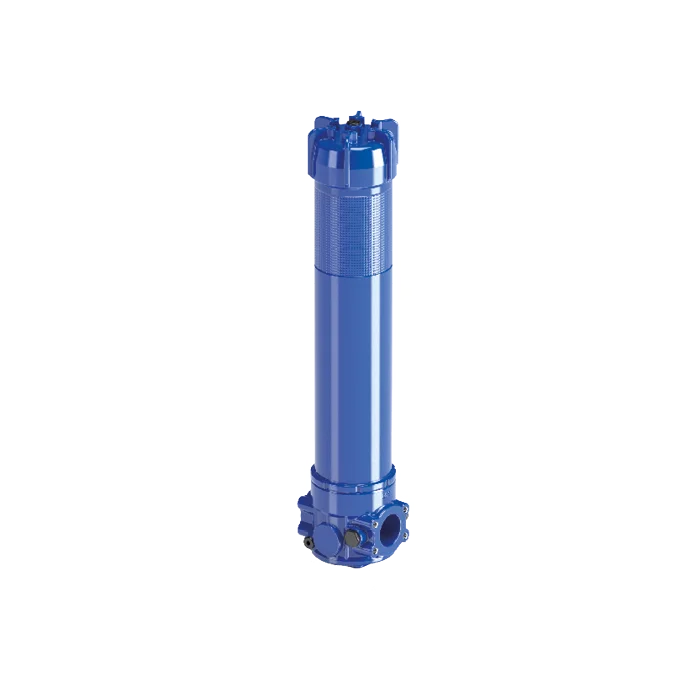

MP Filtri LMP 400 401 430 431 Low Medium Pressure Filters

Working pressure of 60 bar (870 psi) and flow rates up to 740 litres/minute. They have threaded connections from 1 1/2” and 2” BSP/NPT/SAE and flanged connections 2” and 2 1/2” SAE 3000 psi.

LMP400 is a range of low pressure filters with large filtration surface mainly suitable for lubrication and off-line filtration of reservoirs and filtration equipment. They are directly connected to the lines of the system by hydraulic fittings.

Features of MP Filtri LMP 400 filters:

• Vertical mounting
• Female threaded connections up to 2” and flanged connections up to 2 1/2”, for a maximum flow rate of 740 litres/minute
• In line or 90° connections
• Base-mounting design available
• Fine filtration rating
• Water removal elements, to remove free water from the hydraulic fluid
• Bypass valve, to relieve excessive pressure drop across the filter media; opening pressure 350 kPa (3.5 bar) ±10%
• Vent ports, to prevent air trapped in the filter from entering the system
• Drain ports, to remove the fluid from the housing prior the maintenance work
• Visual, electrical and electronic differential clogging indicators
• Seals: standard NBR, series A | optional FPM series V
• Temperature: from -25 °C to +110 °C

Connections:

• LMP 400 – 430: in-line inlet/outlet
• LMP 401 – 431: 90° inlet/outlet

Filter housing materials:

• Head: anodised aluminium
• Housing: anodised aluminium
• Bypass valve: steel

Pressure LMP 400 length 2 – 3 – 4:

• Working pressure: 6 MPa (60 bar)
• Test pressure: 9 MPa (90 bar)
• Burst pressure: 21 MPa (210 bar)
• Pulse pressure fatigue test: 1,000,000 cycles with pressure from 0 to 6 MPa (60 bar)

Pressure LMP 400 length 5 – 6:

• Working pressure: 5 MPa (50 bar)
• Test pressure: 7.5 MPa (75 bar)
• Burst pressure: 15 MPa (150 bar)
• Pulse pressure fatigue test: 1,000,000 cycles, with pressure from 0 to 5 MPa (50 bar)

Contact us for further technical details and configuration options.
