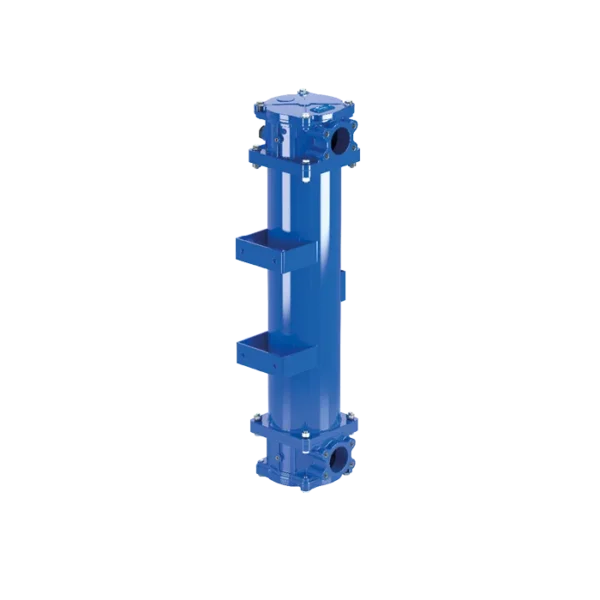

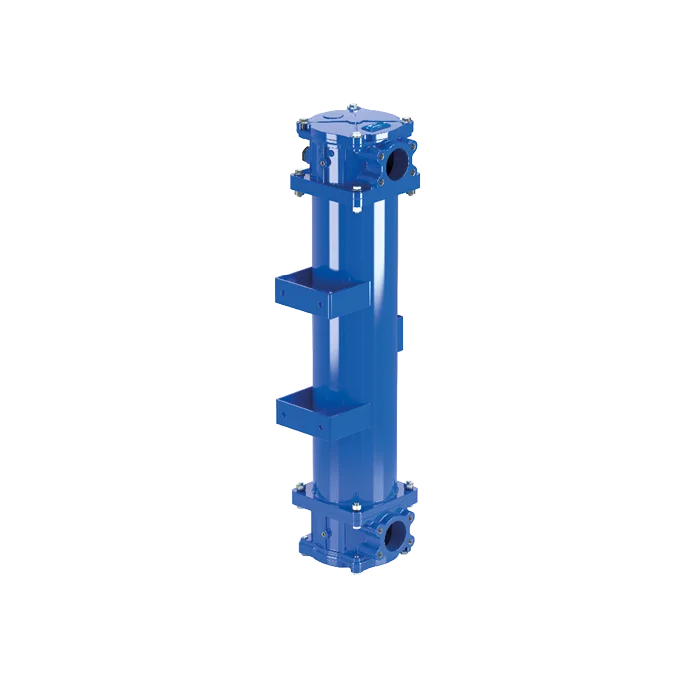

MP Filtri LPH 630 Low & Medium Pressure Filters

MP Filtri LPH 630 is a low-pressure, high-flow filter with a large filtration surface, particularly suitable for industrial applications and off-line filtration of lubrication circuit tanks. It has a working pressure of up to 10 bar (145 psi) and flow rates up to 1600 litres/minute, with 2 1/2″ flanged connections.

LPH 630 is particularly suited to lubrication, off-line tank filtration, and filtration systems for tanks and filtration plants, with versatile connection orientation to fit various hydraulic systems.

Features of MP Filtri LPH 630 filters include:

• 2 1/2″ flanged connections, for a maximum flow rate of 1600 litres/minute
• Versatile connection orientation, to fit various hydraulic systems
• Water removal elements, to remove the free water from the hydraulic fluid

Filter housing materials:

• Body: phosphated steel
• Head: anodised aluminium
• Bypass valve: steel
