Description

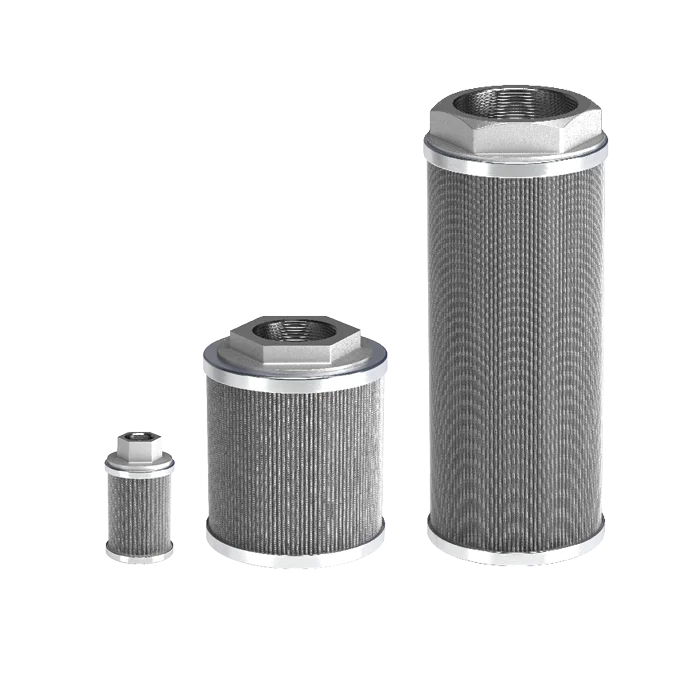

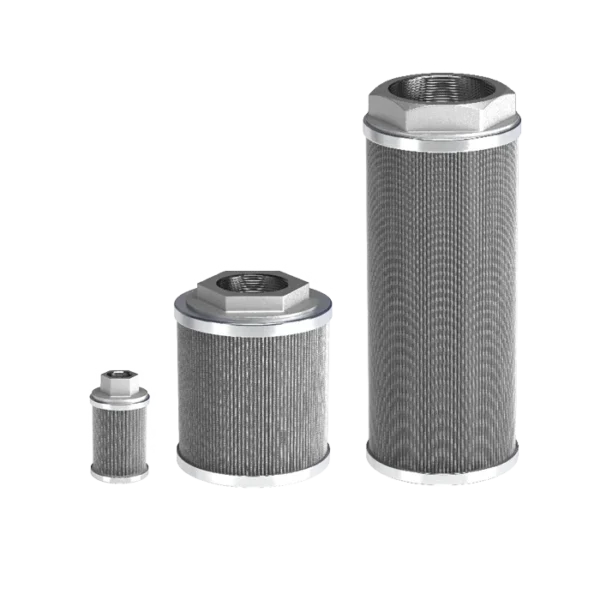

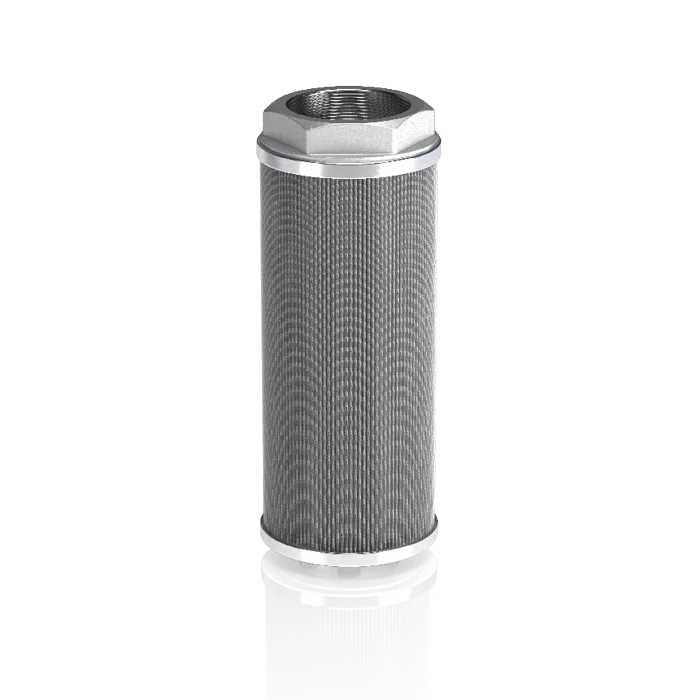

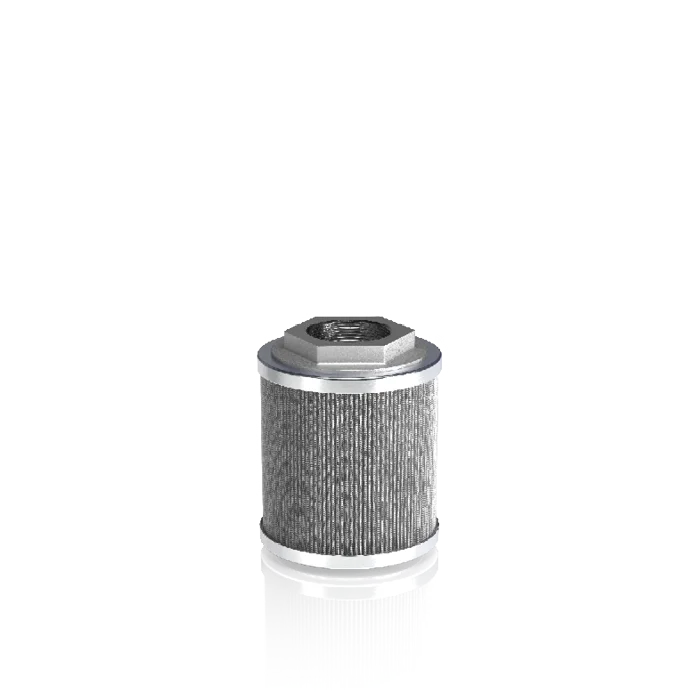

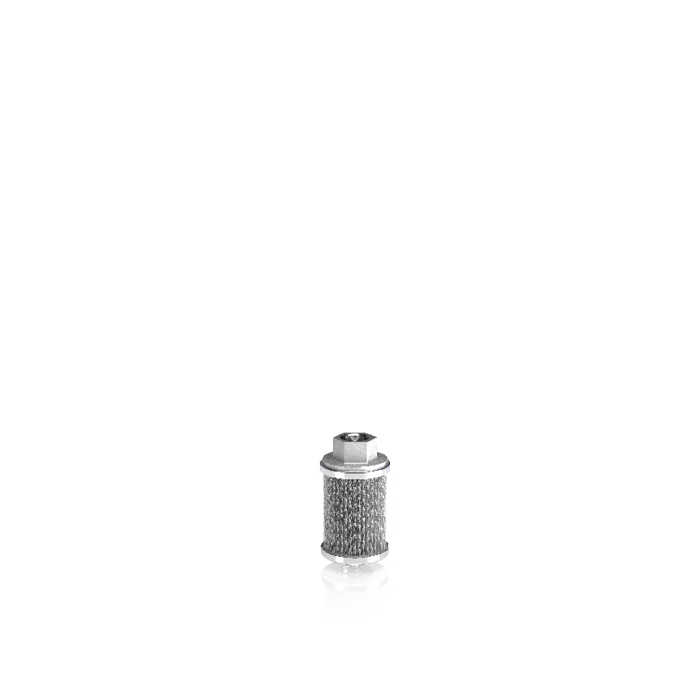

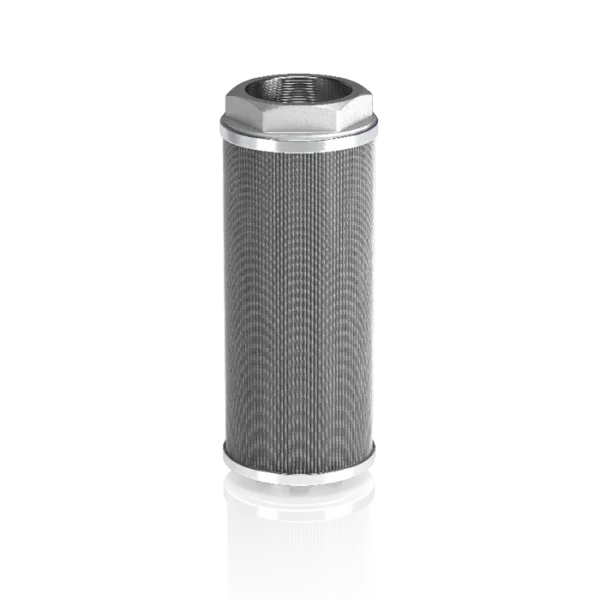

MP Filtri MPA – MPM submerged suction filters have flow rates up to 875 litres/minute and threaded connections from 3/8” to 3” BSP/NPT.
MPA and MPM filters have a robust design allowing them to be used in any heavy-duty applications. They are placed below the minimum oil level, directly connected to the suction line of the pump to protect against coarse contamination
Both MPA and MPM filters are available in sizes: 015 | 025 | 030 | 045 | 050 | 075 | 095 | 120 | 150 | 180 | 220 | 280 | 300 | 380 | 430
- Female threaded connections up to 3”, for a maximum flow rate of 875 l/min
- Magnetic column (MPM), to hold ferrous particles
- Bypass valve, opening pressure 30 kPa (0.3 bar)
- Temperature: from -25 °C to +110 °C
MP Filtri MPA – MPM filter materials
- Connection: aluminium
- Magnetic column
- Tie rod: galvanised steel
- End cap: galvanised steel
- Core tube: galvanised steel
- Filter media: wire mesh
- Bottom: galvanised steel
- Washer: galvanised steel
- Self-locking nut: galvanised steel – nylon
Contact us for further technical details and configuration options.
