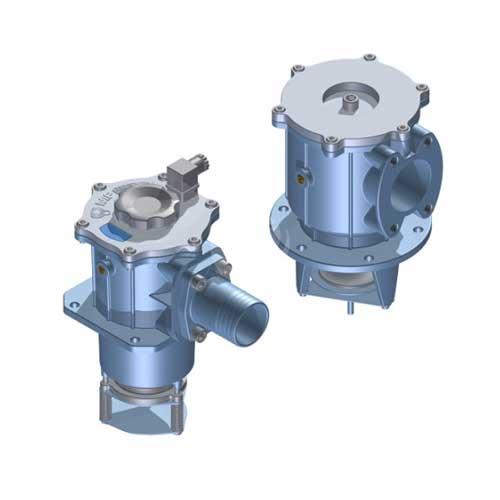

MP Filtri SF2 500 Suction Filters

Description

MP Filtri SF2 500 suction filters have flow rates up to 800 litres/minute and flanged connections up to 4″ SAE 3000 PSI.

They have a semi-submerged positive head and an integrated shut-off valve. They are placed below the minimum oil level, directly connected to the suction line of the pump either on the side or below the tank. The shut-off valve closes automatically when the cover is removed, allowing the flter element to be replaced without any fluid loss.

MP Filtri SF2 500 filters are available in sizes: 500-501 | 503 | 504 | 505 | 510 | 535 | 540

Features:

  • Flanged connections up to 4”, for a maximum flow rate of 800 l/min
  • Optional hose fitting installed, to connect the suction line without the use of flanges
  • Magnetic column, to hold the ferrous particles
  • Plastic and metal handle, to close the shut-off valve before the cover removal
  • Electrical switch, to signal the closed shut-off valve
  • Visual, electrical and electronic clogging indicators
  • Temperature: from -25 °C to +110 °C
  • Seals: standard NBR, series A | optional FPM, series V

Filter housing materials:

  • Housing: anodised aluminium | steel (chemically heat-treated) for SF2 535 – 540
  • Cover: anodised aluminium | steel (chemically heat-treated) for SF2 535 – 540
  • Optional flange: anodised aluminium

Contact us for further technical details and configuration options.
