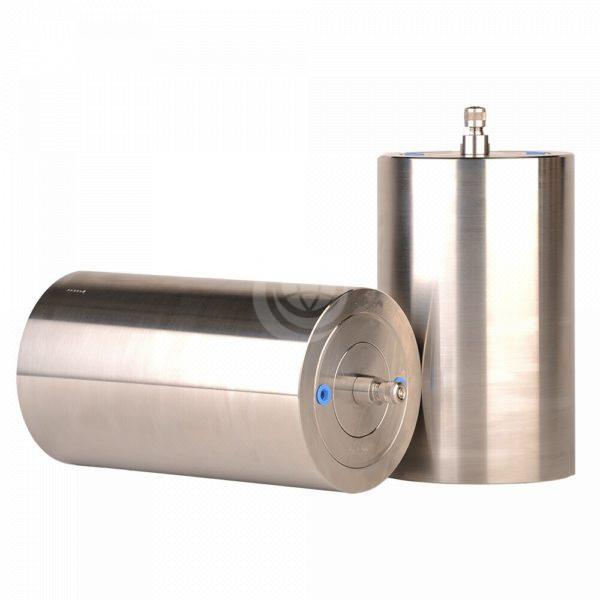

Parker APD BPD CPD DPD Series Pulsation Dampeners

Description

Parker APD BPD CPD DPD pulsation dampeners are available in stainless steel (up to 690 bar) for applications demanding a stronger and more durable product, and polypropylene (up to 10 bar) as a more cost-efficient option for non-aggressive environments.

Technical specifications for Parker APD BPD CPD DPD series pulsation dampeners include:

  • Body material: 316 stainless steel shell
  • Maximum operating pressure: 690 bar
  • Valve: 1/4″ BSP MALE (60° cone)
  • Port connection: BSP female as standard, ANSI or DIN flange options
  • Elastomer material: Nitrile bladder
  • CE certified to the PED (97/23/EC)
  • Operating temperature: -20°C to +100°C
  • Weight (kg): 2.7 | 4.5 | 7.4 | 15 |20 | 31 | 33
  • Height (mm): 200 | 220 | 242 | 270 | 405 | 425 | 437
  • Diameter (mm): 60 | 76 |94 | 127 | 153 | 170



Contact us for further technical details and configuration options.
