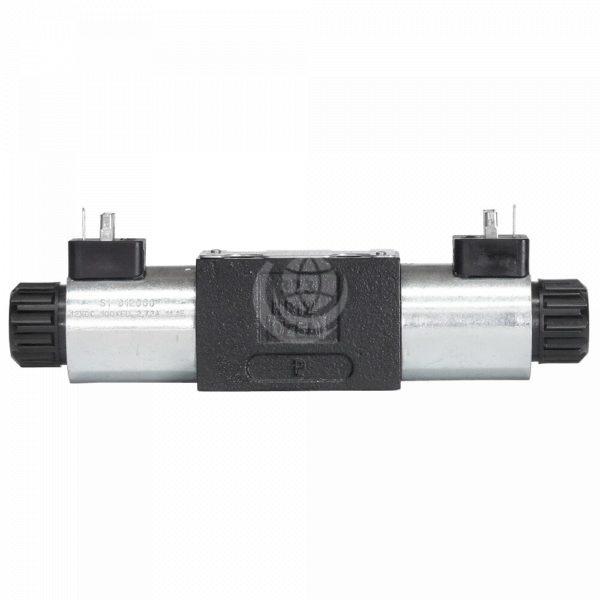

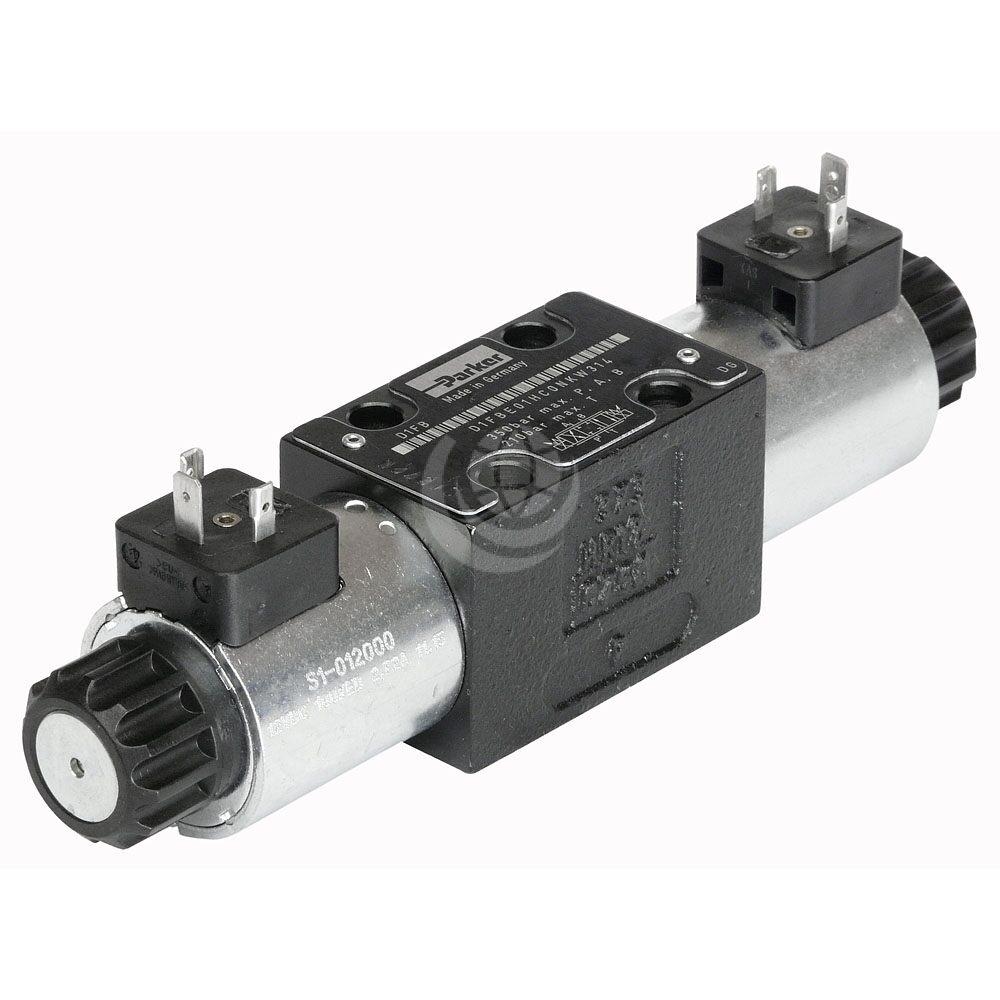

    Parker D3FB Directional Control Valve

    Description

    The Parker D3FB valve (NG10) is a cetop 05 directional control valve, available with or without on-board electronics (coded D3FB OBE).

    It is suitable for applications requiring speed control. Both versions can be ordered with spool/sleeve design  (D3FB*0) for maximum precision as well as spool/body design (D3FB*3) for high nominal flow. The parameters can be saved, changed and duplicated in combination with the digital power amplifier PWD00A-400.

    The D3FB OBE valve has  digital on-board electronics situated in a robust metal housing. This allows usage under rough environmental conditions. Nominal values are factory set. The cable connection to a serial RS232 interface is available as accessory. The valve parameters can be edited with the common ProPxD software for both versions.

    Features and benefits of the Parker D3FB valve include:

    • Spool/sleeve and spool/body design – provides versatile applications, for maximum precision or high nominal flow
    • Manual override – allows to actuate the valve without current
    • Low hysteresis – ensures high repeatability and thus improved process and product accuracy
    • 3 command options for D3FB OBE: +/- 10 V | 4… 20 mA | +/- 20 mA
    • High level of dynamics and flows – optimised process speed

    Contact us for further technical details and configuration options.

    Download the Parker D1FB Technical Catalogue >>>
