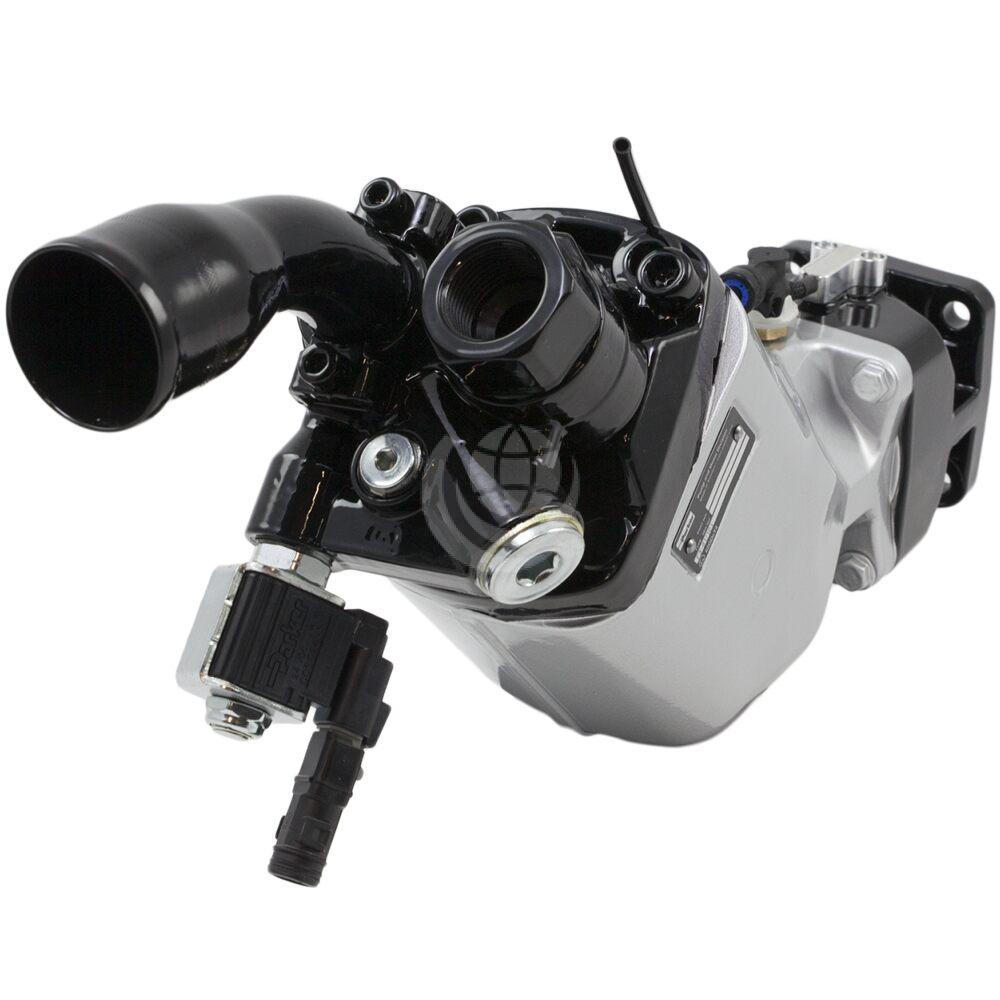

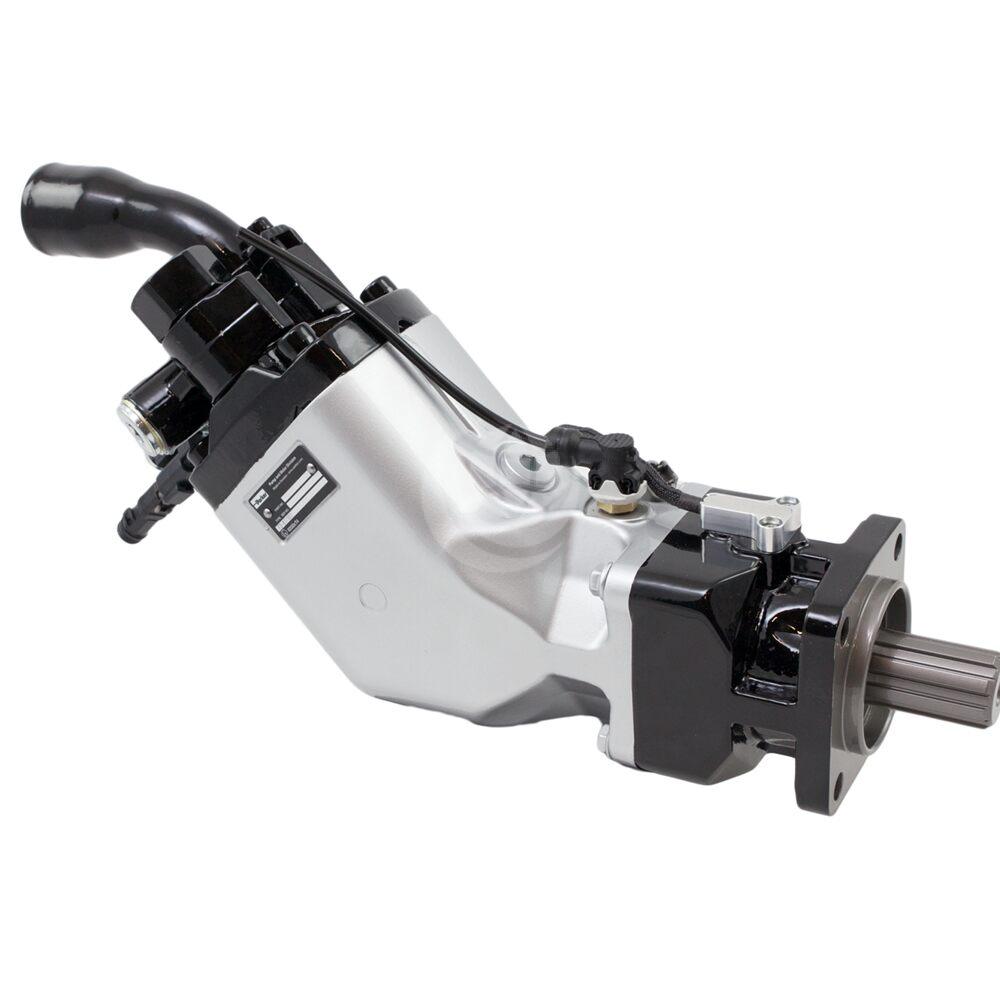

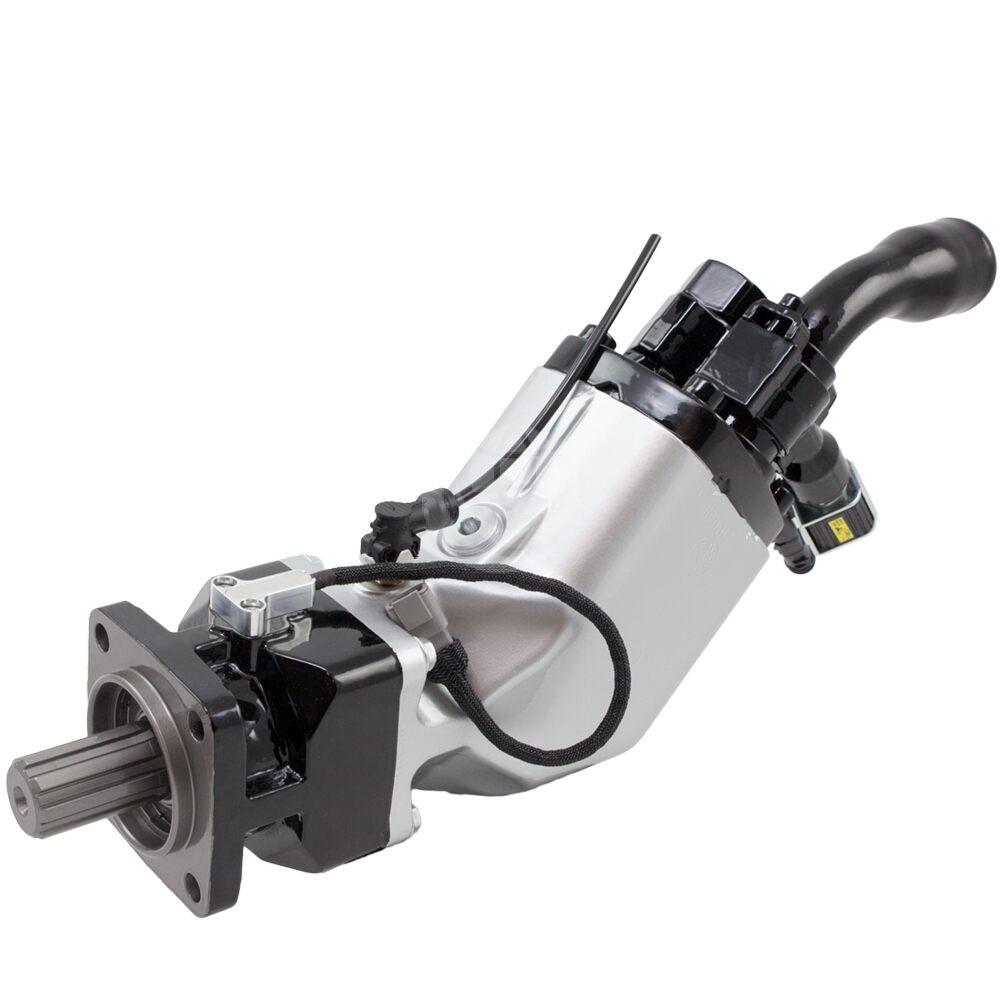

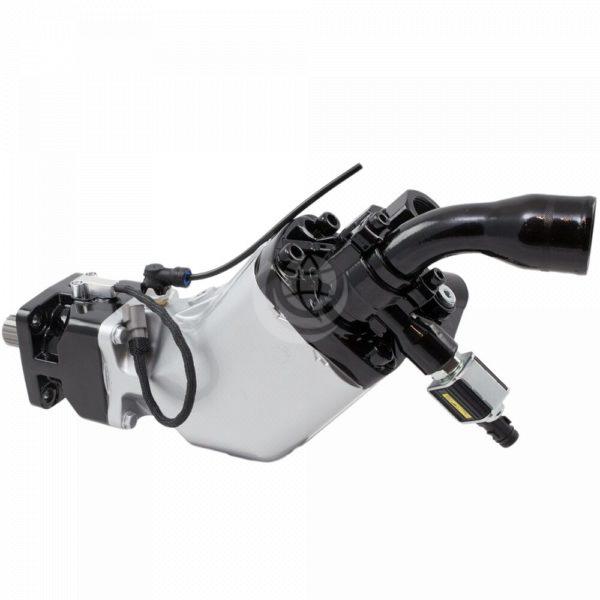

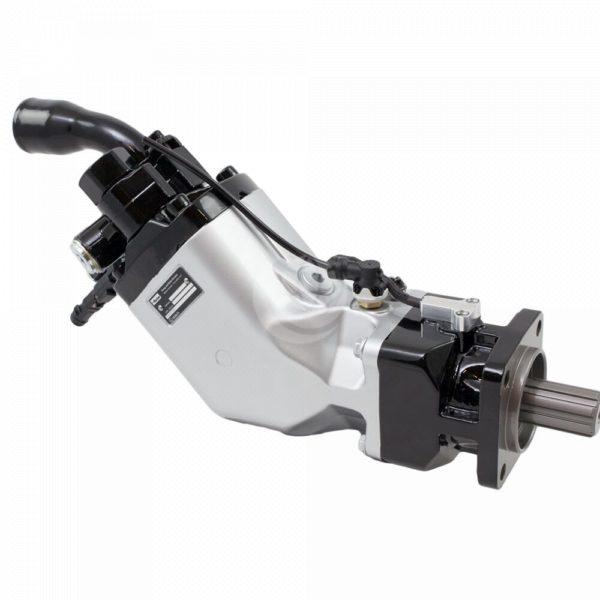

    Parker F3 Pump – Fixed Displacement

    Parker F3 Pump – Fixed Displacement

    Description

    Parker F3 pumps can be engaged and disengaged from the diesel engine when not in use. This means fuels savings, reduced wear and tear on the pump and minimised risk of costly downtime and standstills. Compared to a conventional hydraulic pump in the unloaded position, the new F3 also generates considerably lower noise levels in disconnected mode.

    These pumps are available as: F3-81 (81cc) | F3-101 (101cc) – see the technical data tab for specifications

    Features and benefits of Parker F3 pumps include:

    • Air operated
    • High self-priming speeds
    • Operating pressures up to 400 bar
    • High overall efficiency
    • Low noise level
    • Small installation dimensions
    • Low weight
    • 45° bent-axis angle
    • Optimal inlet port geometry in the end cap
    • Spherical pistons – high speeds
    • Laminated piston rings – low leakage
    • Positive synchronisation with timing gear
    • Installation above the reservoir level possible
    • Tolerates low temperatures and high temperature shocks
    • Shaft end and mounting flange meet the ISO standard for all sizes

    Contact us for further technical details and configuration options.

    Download the Parker F3 Technical Catalogue >>>



    Parker F3 Pumps
    F3 Size 81101
    Displacement cm³/rev81.6102.9
    Maxium flow (litres/min)
    at 350 bar163185
    at 450 bar143160
    Maximum operating pressure (bar)
    continuous350350
    intermittent400400
    Shaft speed
    short circuited pump (low pressure)23002300
    max speed at 350 bar20001800
    max speed at 400 bar17501550
    Torque (Nm)
    at 350 bar453572
    at 400 bar518653
    Input power (kW)
    continuous 7685
    intermittent95123
    Weight (kg)16.716.7
