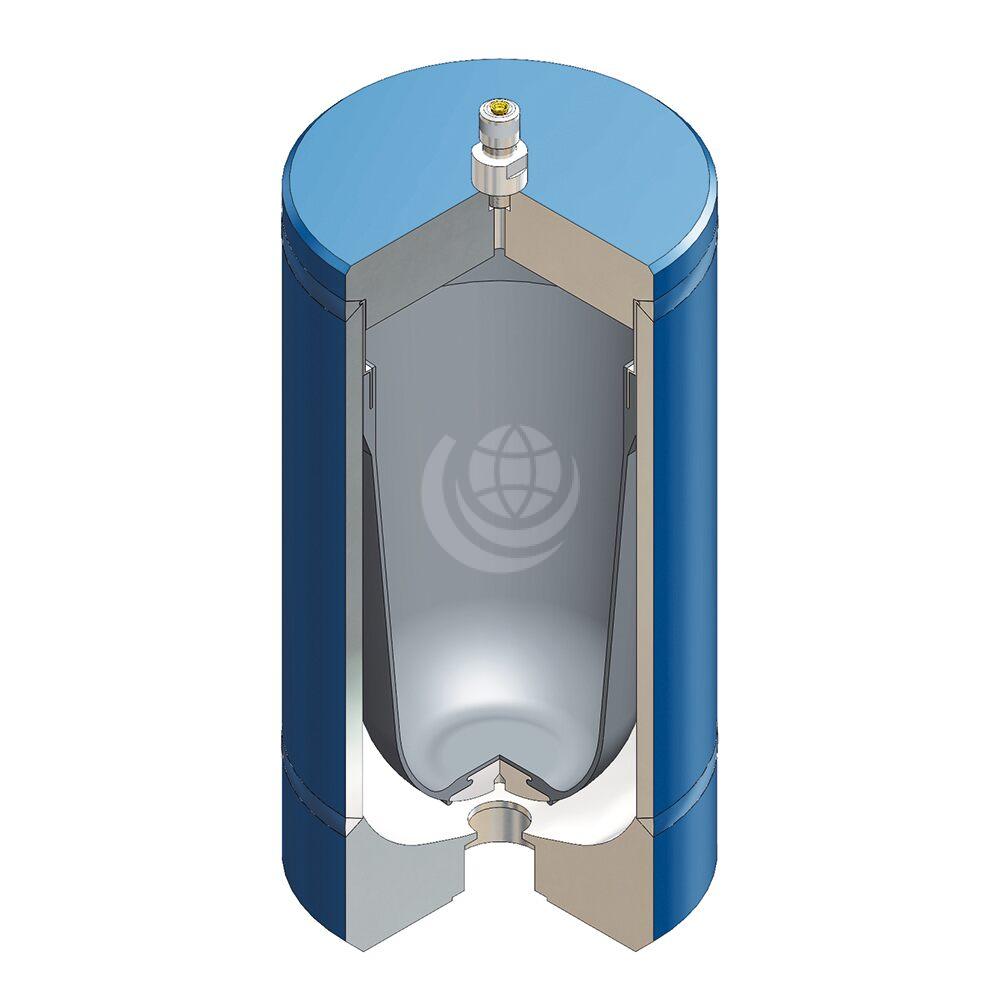

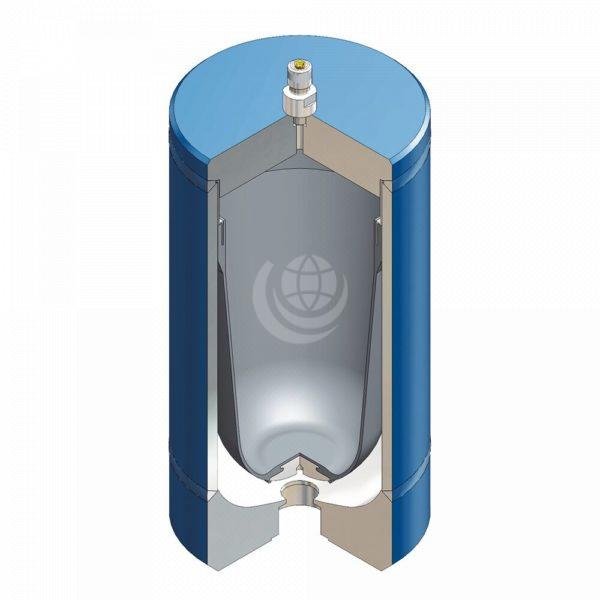

    Parker HCF Series Hydracushion Accumulators

    Parker HCF Series Hydracushion Accumulators

    Description

    Parker HCF series Hydracushion accumulators are non-repairable bladder accumulators designed for high volume, low cost applications where it is more economical to replace a unit than to refurbish it after a long service life.

    The HCF series incorporates bladder technology within a robust welded shell design. Engineered and manufactured to the highest standards this product offers reliable and optimum performance for your hydraulic system. A complete range of accumulator accessories is also available.

    Technical specifications for Parker HCF accumulators:

    • Materials: carbon steel shell and nitrile bladder
    • CE Marked
    • Maximum operating pressure: 172 bar | 210 bar
    • Maximum flow rate: 159 | 204 | 363 | 470 litres/minute
    • Valve: 1/4″ BSPM | 0.302″ x 32 T.P.I., 1/4″ BSPM
    • Port connection: G1/2″ BSPF |  G3/4″ BSPF | G1″ BSPF | G1 1/4″ BSPF
    • Height: 190 | 230 | 282 | 345 mm
    • Diameter: 95 | 120 | 145 | 172
    • Weight: 3 | 10 |16 | 23 kg

    Contact us for further technical details and configuration options.
