Description

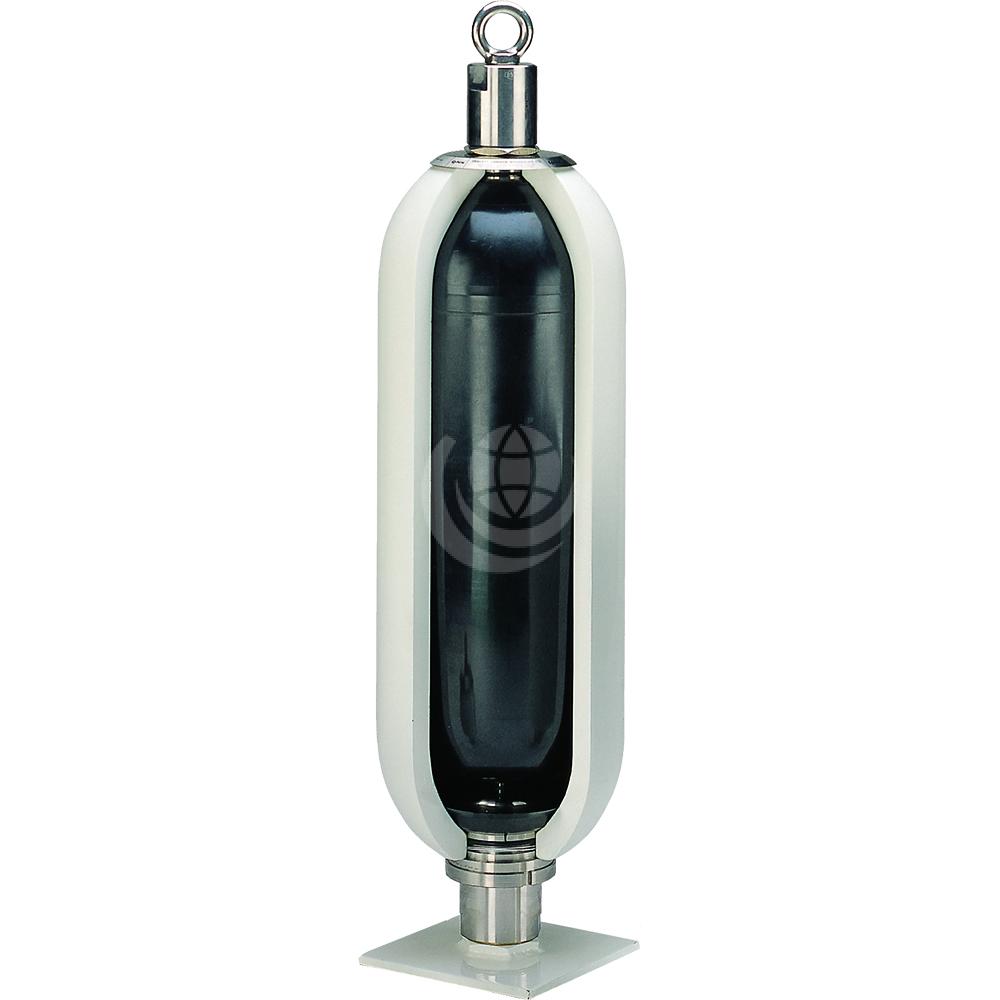

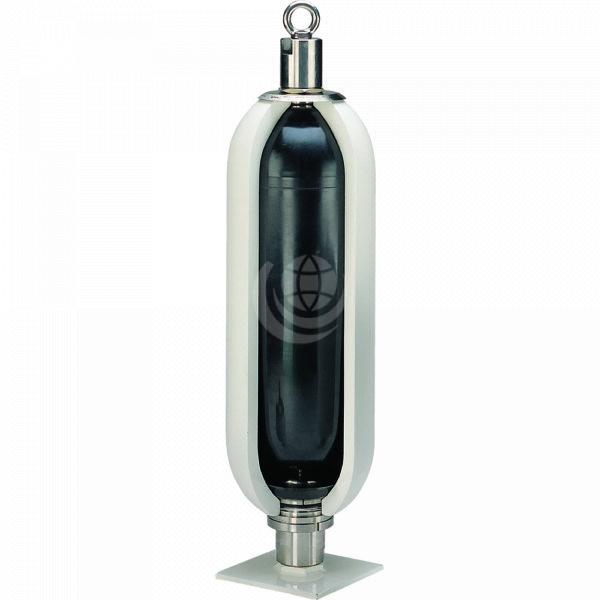

Designed for high pressure hydraulic systems, the Parker O&G bladder accumulator is designed for hazardous environments within the oil and gas industry and other aggressive environments. Made from carbon and stainless steel, up to 760 bar.

Technical specifications:

• Parker O&G Series – 207 bar to 760 bar range
• Volume: 10 | 20 | 28 | 37 | 54 litres
• Maximum operating pressure: 345 bar
• Valve: G 1/4″
• Port connection:  2 BSPF
• Maximum flow rate: 749 litres/minute
• Elastomer material: standard NBR (nitrile) bladder
• Operating temperature: from -15°C to +80°C
• Weight: 35 | 55 | 61 | 91 | 130 kg
• Height: 575 | 886 | 1158 | 1407 | 1922 mm
• Extensive range of international and industry approvals: PED 2014/68/EU | EN 14359 | ATEX | ASME VIII div 1 | SELO | CRN | AS1210 | NR13 | CUTR | DNV | BV Marine | ABS | GL

Contact us for further technical details and configuration options.
