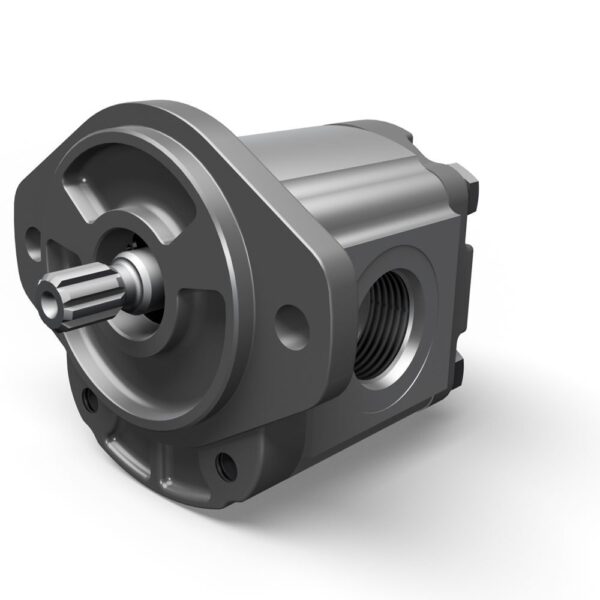

    Parker Commercial PGM511 Motor – Group 2, Aluminium Gear Motor

    Parker Commercial PGM511 Motor – Group 2, Aluminium Gear Motor

    Description

    Parker PGM511 motors are fixed displacement, aluminium gear motors offering high performance and high power density. They were formerly made by Commercial Intertech and were known as their ‘P11, Group 2’ motors, before Commercial Intertech joined the Parker Group.

    These motors are ideal for aerial, agriculture, construction, forestry, materials handling, and turf equipment applications.

    Parker PGM511 series motors come in 10 displacements from 6cc/rev to 33cc/rev: PGM511-0060 | PGM511-0080 | PGM511-0100 | PGM511-0110 | PGM511-0140 | PGM511-0160 | PGM511-0190 | PGM511-0230 | PGM511-0270 | PGM511-0330

    They have maximum continuous pressures are up to 250 bar and speeds up to 3,500 rpm – see the technical details tab.

    Features and benefits include:

    • Twelve tooth gear profile
    • High efficiency and low noise at high operating pressures
    • Three-piece construction for distribution flexibility
    • Aluminium pumping sections for light weight
    • Journal bushings for long life
    • Pressure-balanced thrust blocks for high efficiency
    • Multiple sections available
    • SAE shafts, flanges and porting available
    • Bi-directional.

    Contact us for further technical details and configuration options.

    Download the Parker PGM511 Technical Catalogue >>>

    PGM / PGP 511 Code Displace-ment (cm³/rev)Max Cont. Pressure (bar)Minium Speed (rpm)Maximum Speed (rpm)
    006062505003500
    008082505003500
    0100102505003500
    0110112505003500
    0140142505003500
    0160162505003500
    0190192505003250
    0230232255002750
    0270271905002350
    0330331555002000
