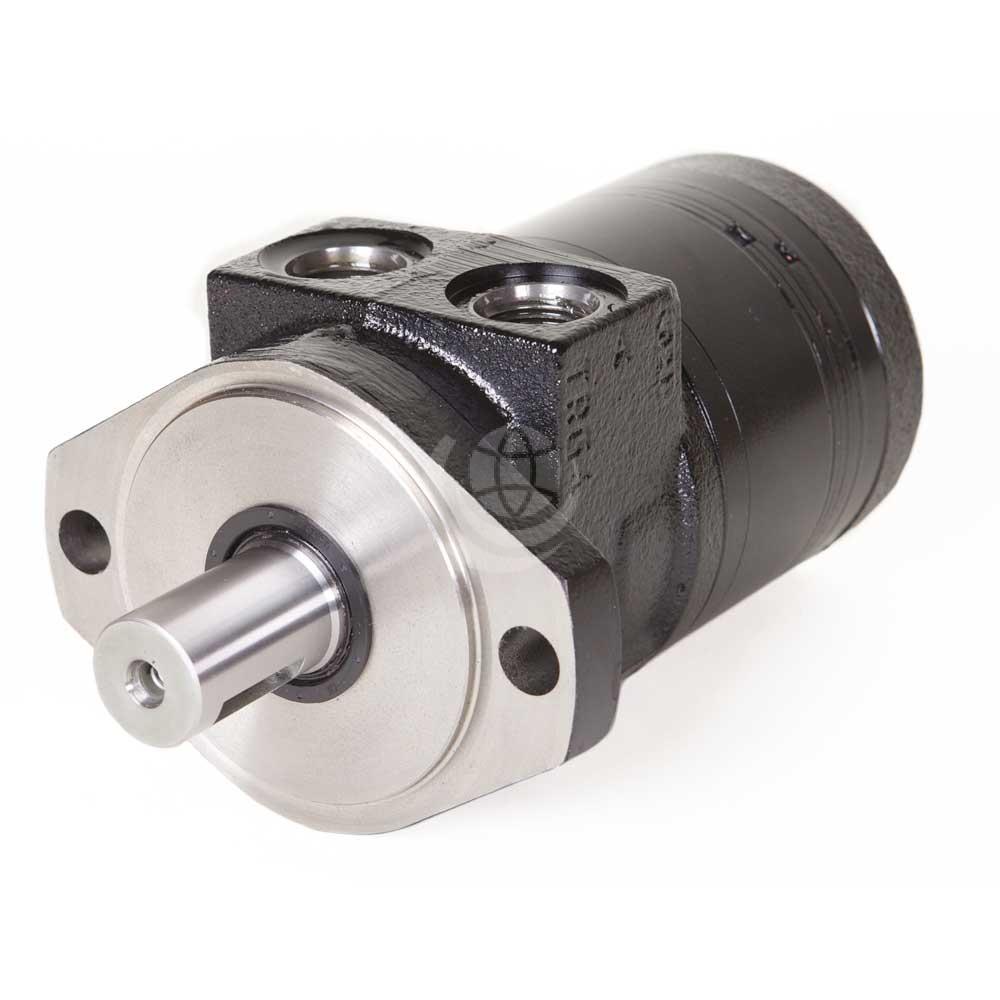

    Parker TB Series Motor – Light Duty Gerotor Motor

    Parker TB Series Motor – Light Duty Gerotor Motor

    Description

    The Parker TB Series is a durable, light duty, low speed, high torque hydraulic motor with up to 1-inch shaft. Its superior side load capacity, high pressure shaft seal, and smooth extra low speed operation make it ideal for light to medium duty applications such as conveyors, gear boxes, winches and booms.

    Design features of the Parker TB motors include a high pressure shaft seal as standard so external drains are never required. Roller vane technology ensures automatic wear compensation, and full flow internal cooling and flushing.

    The TB motor series is available in 15 displacements from 36 cc/rev to 392 cc/rev: TB0036 | TB0045 | TB0050 | TB0065 | TB0080 | TB0100 | TB0130 | TB0165 | TB0195 | TB0230 | TB0260 | TB0295 | TB0330 | TB0365 | TB0390

    • DU and sintered copper/steel bushings
    • Robust construction for longer life
    • Continuous oil flow across internal splines for longer life
    • Superior side load capacity
    • Smooth, extra low speed operation
    • High pressure shaft seal is standard
    • Innovative design eliminates the need for a case drain
    • Dependability based on high quality design and manufacturing

    Contact us for further technical details and configuration options.

    TB Motor00360045005000650080010001300165019502300260029503300365390
    Displacement (cm³/rev) 364149658298130163195228260293328370392
    Max speed (rev/min)932805678511409454430343287246216191171151143
    Max cont. oil flow (l/min) 343434343445454545454545454545
    Max int. oil flow (l/min)343434343445575757575757575757
    Max cont. pressure (bar) 12512512512512512512512512510310097938683
    Max int. pressure (bar)165165165165165165165155145138131125114105100
    Max supply pressure (bar)190190190190190190190190190190190190190190190
    Max cont. torque (Nm)486478107135169220273340316350383413440428
    Max int. torque (Nm)6788107145184217297346400427465499509540525
