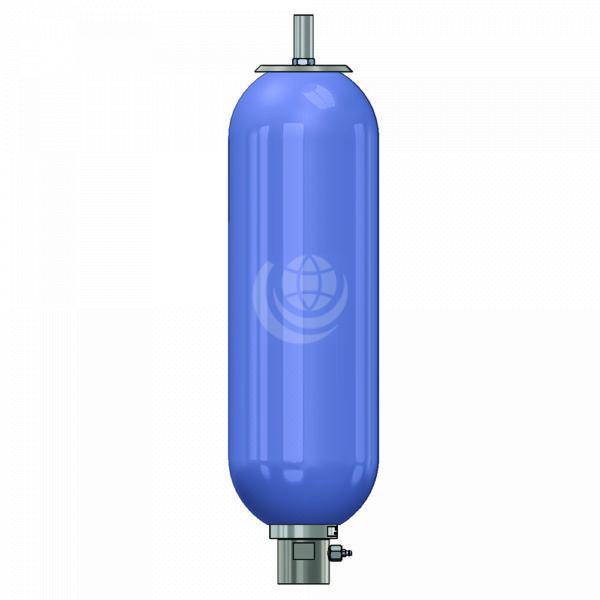

    Parker UK Series Accumulators – High Pressure

    Parker UK Series Accumulators – High Pressure

    Description

    Parker UK bladder accumulators provide a reliable and efficient solution for storing energy under pressure. They are ideally suited for the UK Industrial market and are fitted with a bonded seal fluid port and ¼” BSP gas connection as standard (more options available). They are available in carbon steel (20 to 80 bar) and stainless steel (20 to 40 bar).

    Technical specifications:

    • Parker UK series – 207 bar to 420 bar range
    • Body material: carbon steel shell
    • Maximum operating pressure: 345 bar
    • Valve: 1/4″ BSP
    • Port connections: 1/2″ BSPF | 3/4″ BSPF Z | 1″ BSPF | 1 1/4″ BSPF | 2″ BSPF
    • Maximum flow rate: up to 749 litres/minute
    • Elastomer material: standard NBR (nitrile) bladder
    • Operating temperature: -15°C to +80°C
    • Weight: 2 kg to 130 kg
    • Height: 292 mm to 1922 mm



    Contact us for further technical details and configuration options.
