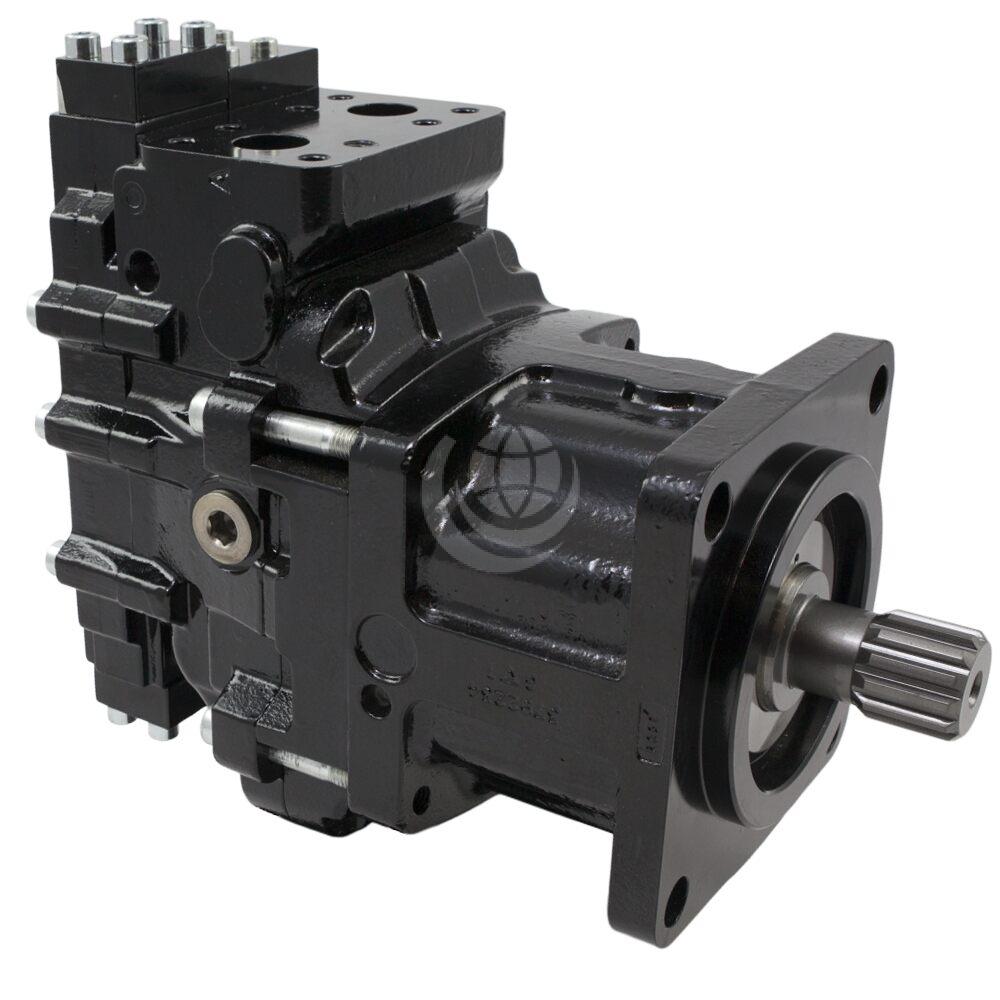

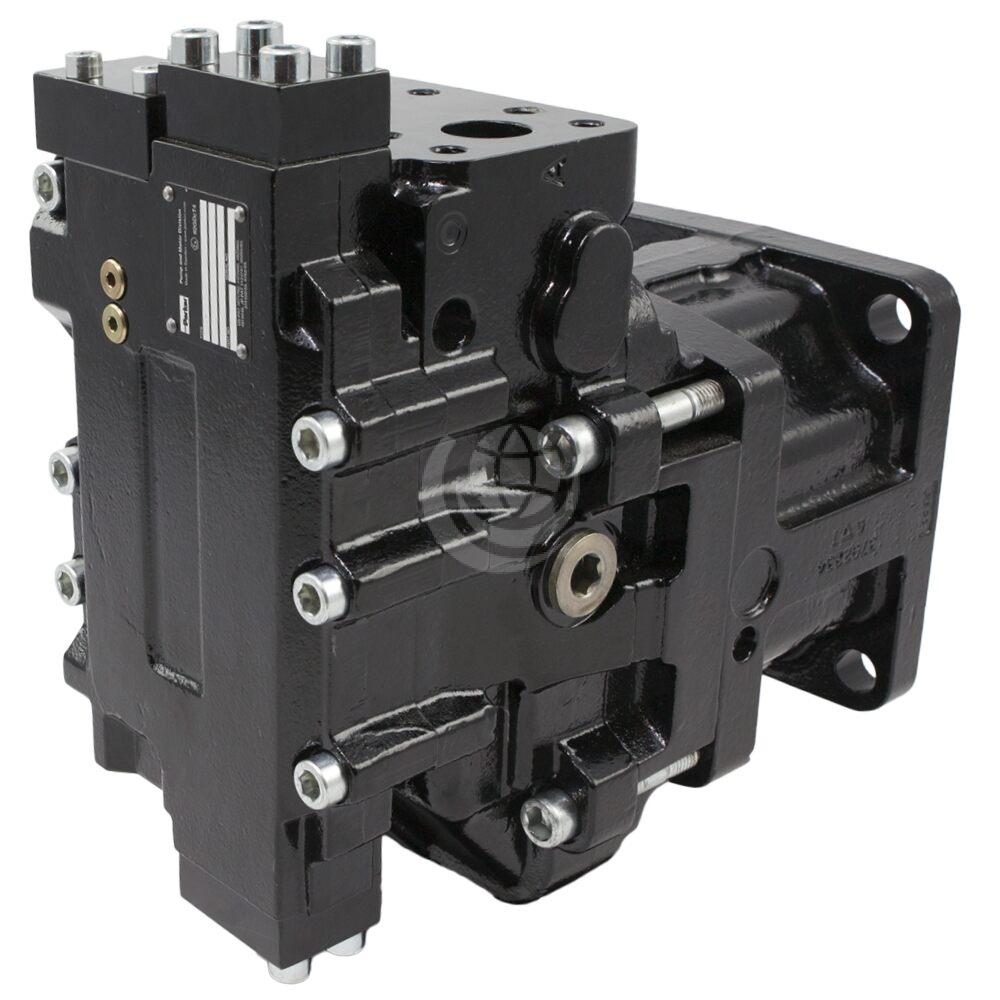

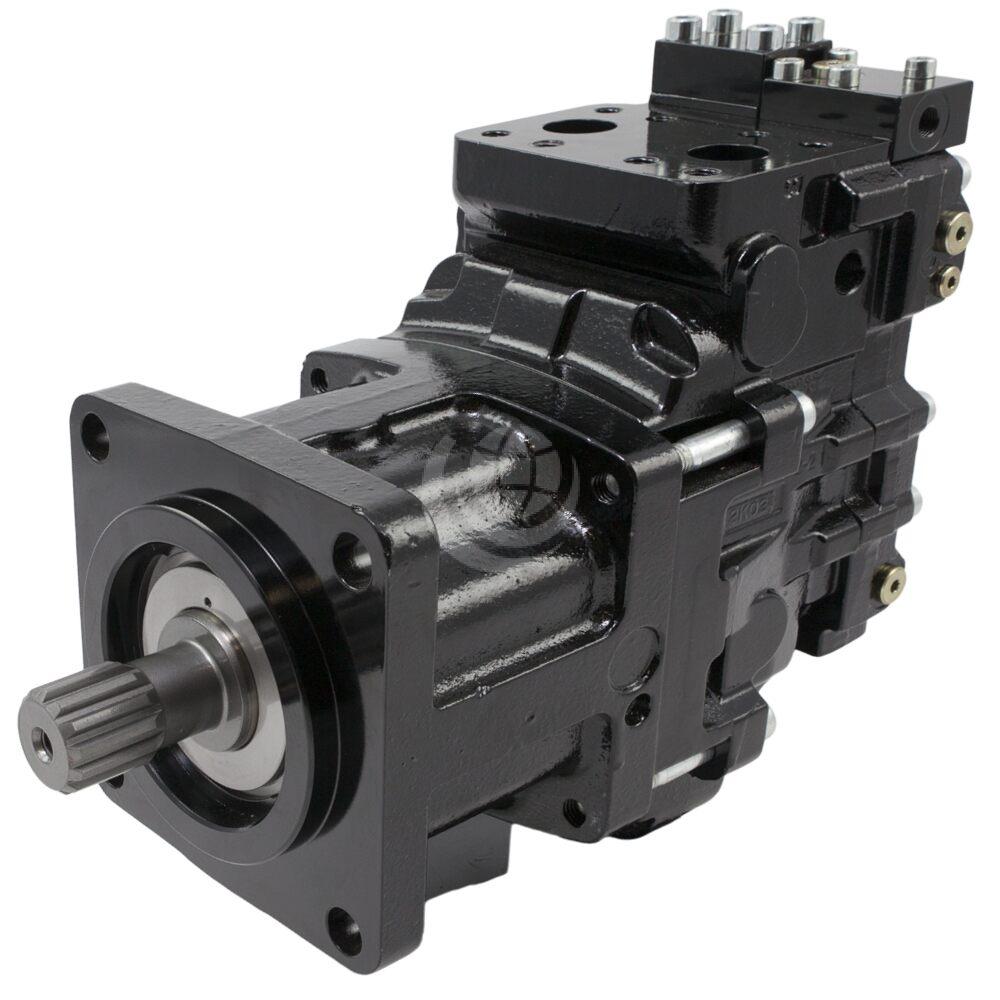

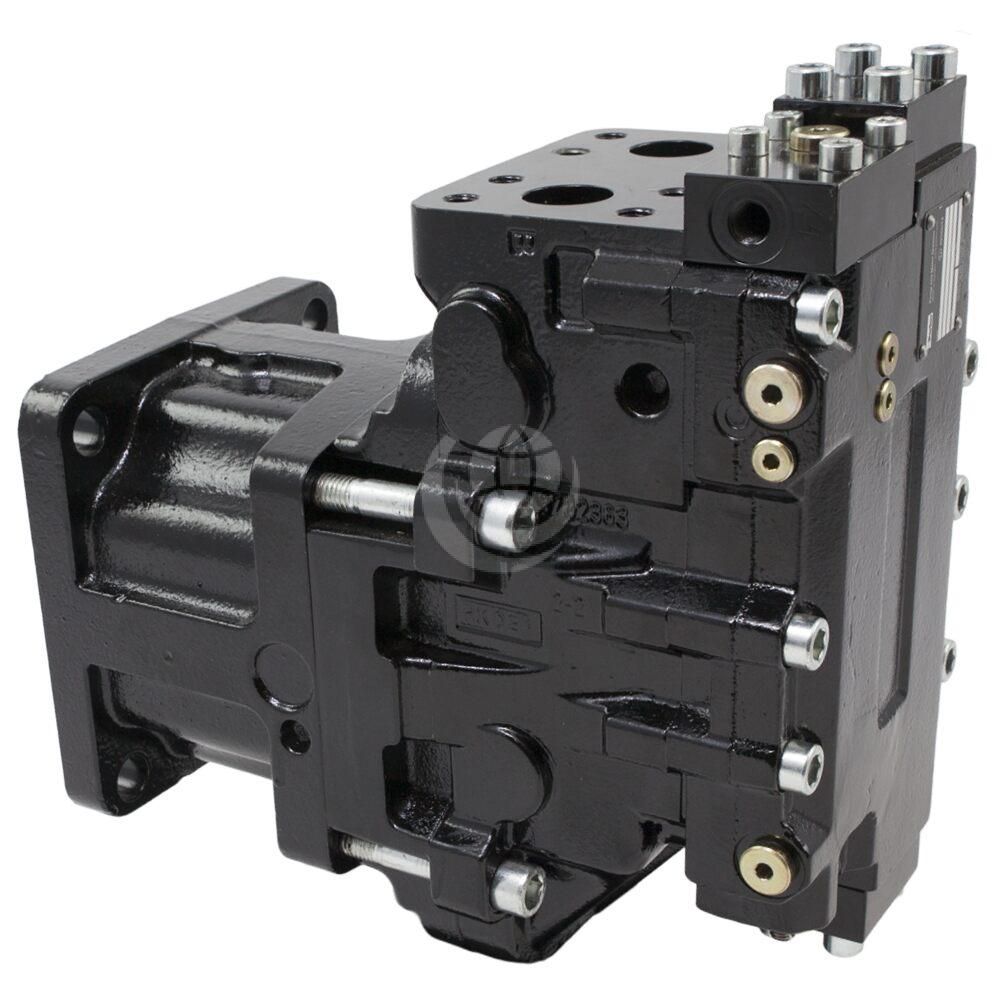

Parker V14 Motor – Large Frame, Variable Displacement

Description

The Parker V14 motor is a bent axis, variable displacement motor with a larger frame than the V12 model. It is engineered for both open and closed circuits transmissions with focus on high performance machines. Common applications include: excavators, forestry machinery, mining and drilling machines, wheel loaders and winch drives.

It is available in 2 sizes: 110cc and 160cc. See the technical details tab for performance specifications.

When compared to the V12, the Parker V14 motor provides improved speed capability and control performance. It also has a reduced number of parts and stronger shaft bearing support.

Features and benefits include:

  • High operating speeds thanks to low weight pistons
  • Wide displacement ratio (5:1)
  • Broad range of controls for most applications
  • ISO, SAE and cartridge versions
  • High overall efficiency throughout the entire displacement range
  • Nine-piston design provides high start-up torque and smooth operation
  • Compact size and a high power-to-weight ratio
  • Low noise levels due to a very compact and sturdy design with smooth fluid passages
  • Long service life and proven reliability
  • Optional integrated speed sensor and flushing or pressure relief valves

Contact us for further technical details and configuration options.

Download the Parker V14 Technical Catalogue >>>

V14 Frame Size110160
Displacement [cm3/rev]110160
at 35° (max)2232
at 6.5° (min)
Operating pressure [bar]
max intermittent480480
max continuous420420
Operating speed [rpm]
max intermittent at 35°39003400
max continuous at 35° 34003000
max intermittent at 6.5 to 20°65005700
max continuous at 6.5 to 20°57005000
min continuous 5050
Flow [litres/min]
max intermittent430550
max continuous375480
Output torque [Nm], 100 bar175255
Output power (kW)262335
Corner power (kW)
intermittent570730
continuous440560
Weight (kg)5468
