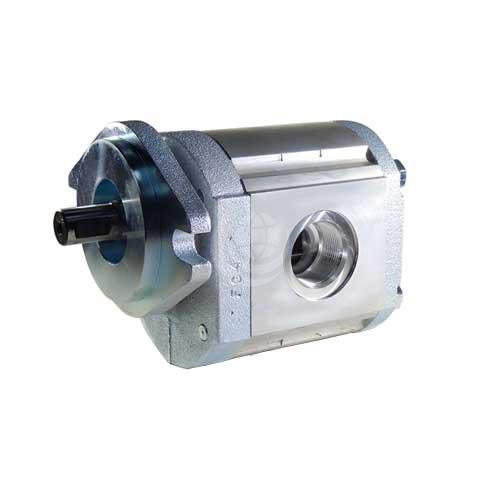

Ronzio Z3 Series Aluminium Pump and Motor

External Gear Pump – Aluminium / External Gear Motor – Aluminium


Ronzio Z3 series aluminium pumps and motors are made in 3 parts providing maximum flexibility. In addition, single and multiple Pump with separate flows are available.

Additional technical data and features for the Ronzio Z3 series:

  • Cast iron covers for high performances;
  • Extruded aluminium body;
  • Maximum continuous working pressures: up to 300 bar/4351 psi;
  • Axial compensation for maximum efficiency;
  • High volumetric efficiency: 95% average;
  • Capacities from 20 up to 90 cc/rev;
  • Reduced noise levels thanks to the gear tooth profile;
  • Wide range of flanges, shafts and connections compatible with most of the market standards;
  • High and low temperatures seals available;
  • Unidirectional and bidirectional pump and motor;
  • Option of fixed or adjustable rated maximum pressure valve;
  • Multiple pump combinations possible.
Contact us for further technical details and configuration options.
