Description

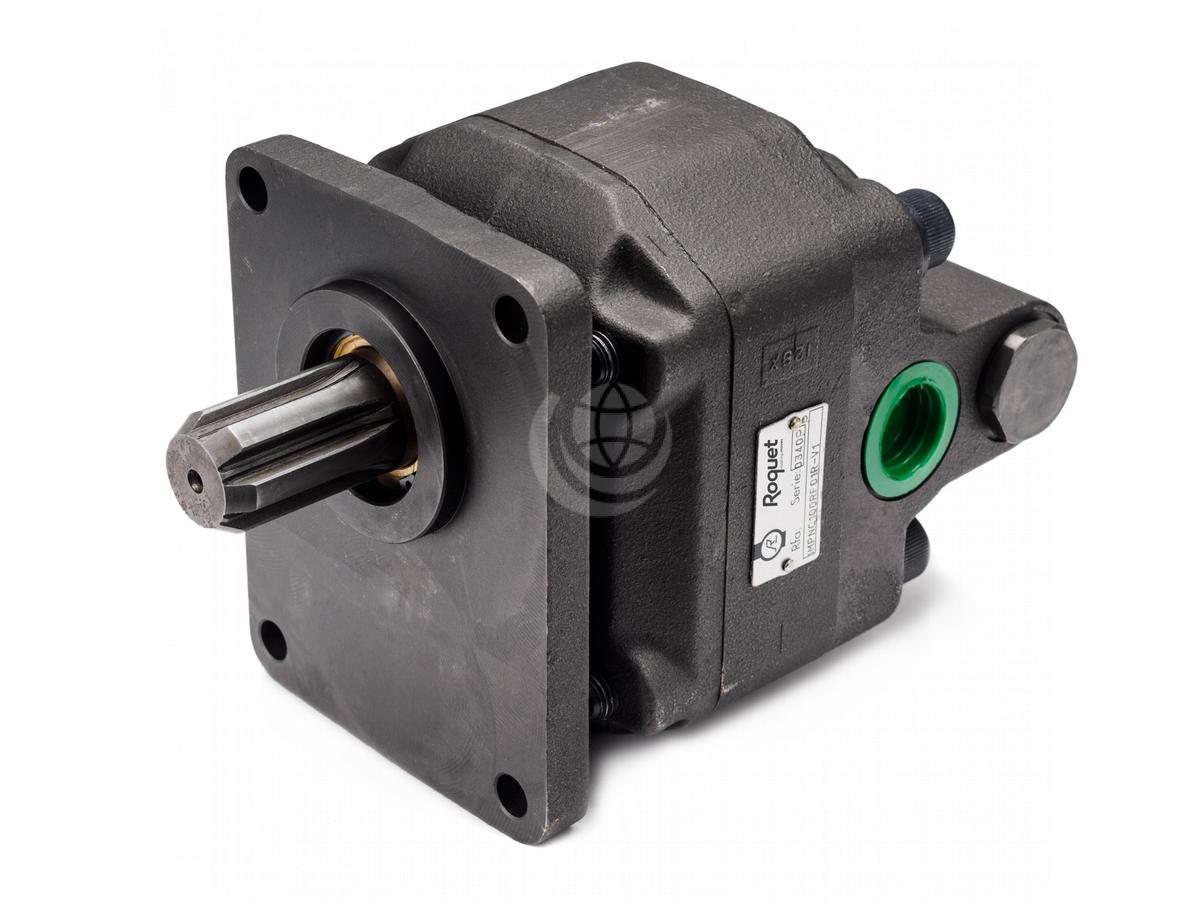

Made from cast iron, Roquet Group 3.5 / 4 – PNC series gear pumps are available in a range of displacements: 53.3cc | 66.6cc | 83.3cc | 100cc | 116.6cc | 133.3c | 150.0cc and offer flow rates from 80 litres/minute to 225 litres/minute (at 1500 rpm).

• Side ports threaded G, as standard
• Oil viscosities between 20-80 cSt, at working pressure and 50° C
• Oil temperature range: + 5°C to + 80°C
• Clockwise or anti-clockwise rotation when facing the shaft end.

Contact us for further technical details and configuration options.
