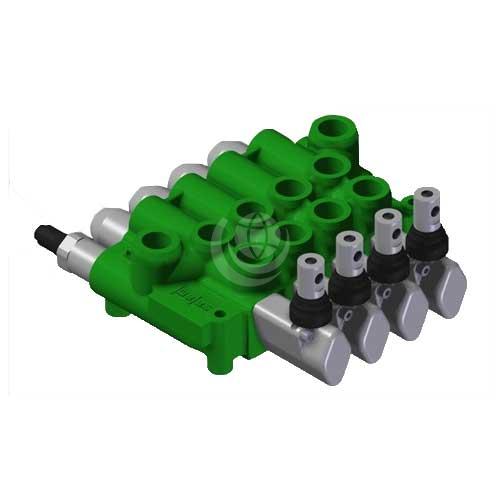

    Salami VDM09 Cast Iron Monoblock Valve

    Directional Monoblock Valves – Cable Operated / Electronically Operated / Lever Operated / Oil Operated

    • Description

    Description

    The Salami VDM09 series is constructed in cast iron monoblock, from 1 to 6 working sections.

    General features:

    • Power beyond (HPCO) configuration
    • Several types of spool – double, single acting, spool motor, float position, regenerative position etc.
    • Several spool control and spool positioning devices
    • Spool with over centre valve hydraulic kick-out built-in
    • Spool construction is in hardened, nickel-plated steel
    • Parallel circuit with single load check valve on pressure P line

    Technical details for the 1 to 6 section Salami VDM09 series are as follows:

    • 280bar / 4050 psi operating pressure
    • 90 litres/minute maximum flow per section
    • P circuit
    • 75 litres/minute nominal flow
    •  280 bar / 4050 psi maximum operating pressure – P
    • 280 bar / 4050 psi maximum operating pressure – A/B
    • 25 bar / 360psi, maximum operating pressure – T

    Contact us for further technical details and configuration options.
