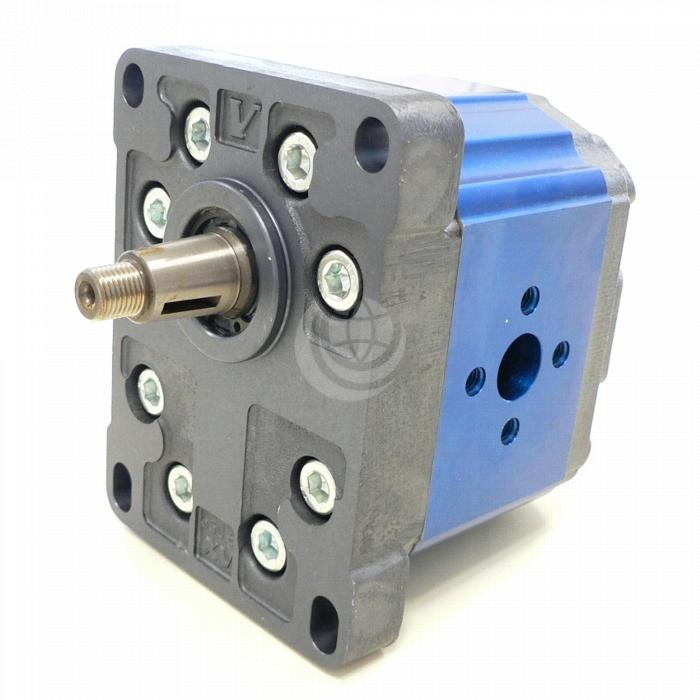

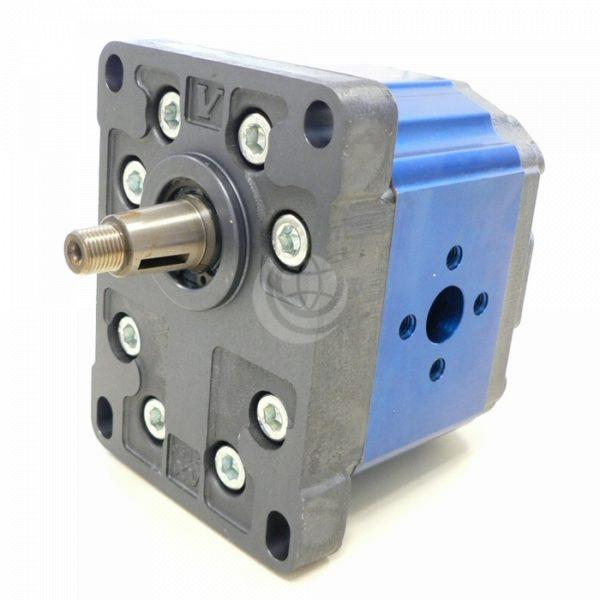

    Vivolo Vivoil External Gear Pump / Motor – Series XV – Group 3

    Vivolo Vivoil External Gear Pump / Motor – Series XV – Group 3

    Description

    Aluminium External Gear Pump / Motor – Series XV – Group 3 – left or right rotation.

    The Vivoil Vivolo XV3 Group 3 series comprises of: XV3P / XP3 unidirectional pumps, XV3R / XR3 reversible pumps, XV3U / XU3 unidirectional motors, XV3M / XM3 reversible motors.

    Main features:

    • Displacements from 14.89 cm3/rev to 86.87cm3/rev
    • Maximum pressures up to 320 bar
    • Rotation speeds up to 3000 rpm

    Options available:

    • Viton seals
    • Maximum pressure valve
    • High-Pressure shaft seal (25 bar 1500 rpm)
    • Shaft seal with metal support washer for back pressure up to 6 bar
    • Inlet and outlet in the body, front flange or back cover
    • Double shaft
    • Other shafts available: tapered shaft 1:8 with key, parallel shaft with key, splined shaft

    Contact us now for technical advice and configuration options.

    Download the Vivolo Vivoil Gear Pumps and Motors Technical Data Sheet >>>

    Clear
    SKU: Vivolo-XV-3P
