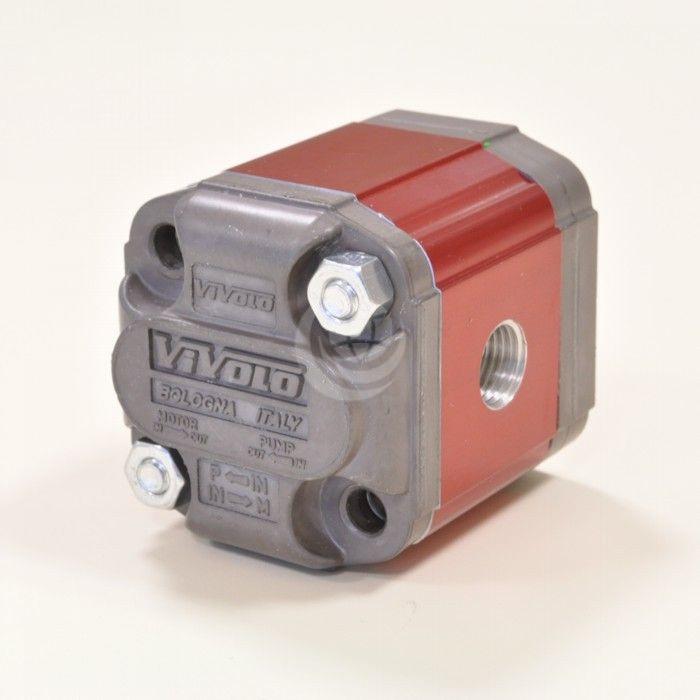

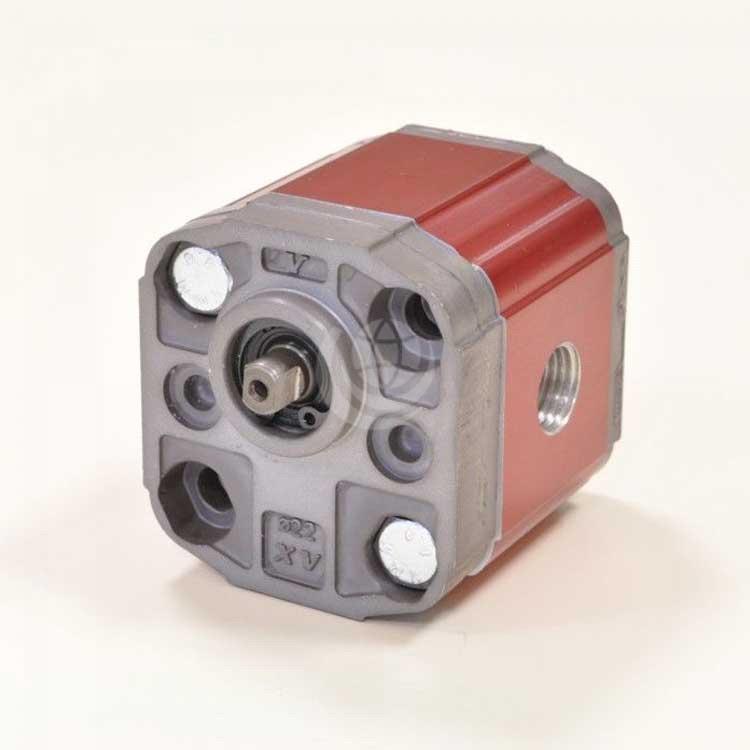

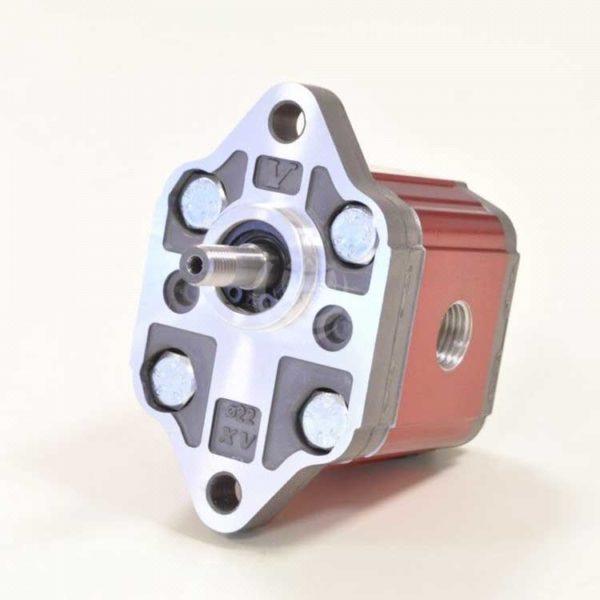

Vivolo Vivoil External Gear Pump / Motor – Series XV – Group 0


External Gear Pump / Motor – Series XV – Group 0

The flange of this model has a diameter of 22 mm, left or right rotation. You can reverse it without having to add any components (exception: versions with outlet / inlet in the front flange) to optimize storage space and adapt the product to your needs.

The series comprises of: Vivolo XV0P / XP 0 series unidirectional pumps; Vivolo XV0R / XR0 series reversible pumps; Vivolo XV0U / XU0 series unidirectional motors and Vivolo XV0M / XM0 series reversible motors.

Main features:

  • Displacements from 0.16 cm3/rev to2.28 cm3/rev
  • Maximum pressures up to 280 bar
  • Rotation speeds up to 9000 rpm

Options available:

  • Viton seals
  • Maximum pressure valve
  • Double shaft

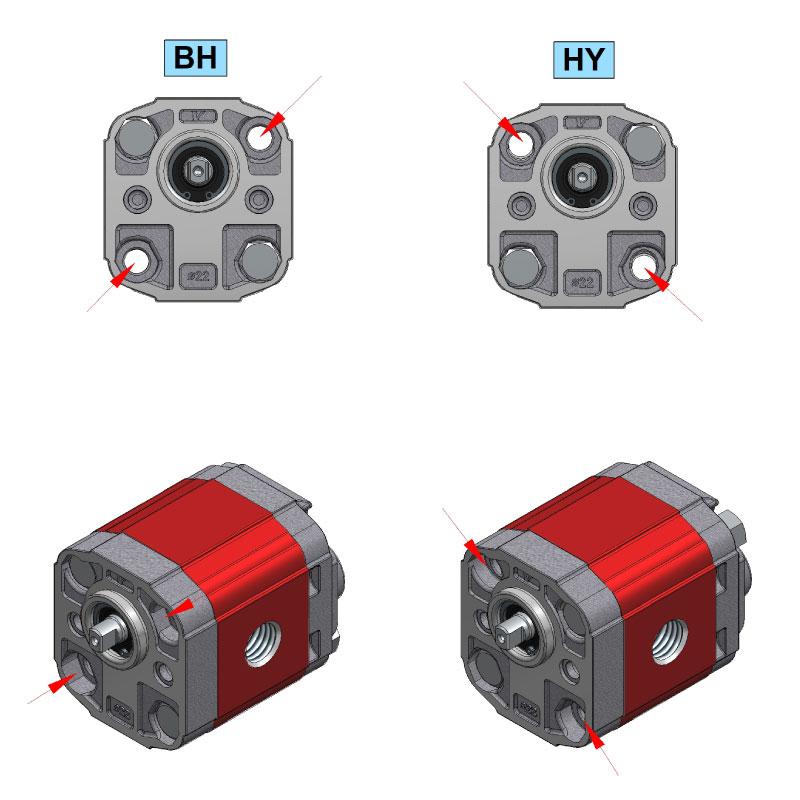

  • Inlet and outlet in the body, front flange or back cover
  • Other shafts available: parallel shaft with key or milled shaft

Contact us now for technical advice and configuration options.

Download the Vivolo Vivoil Gear Pumps and Motors Technical Data Sheet >>>
