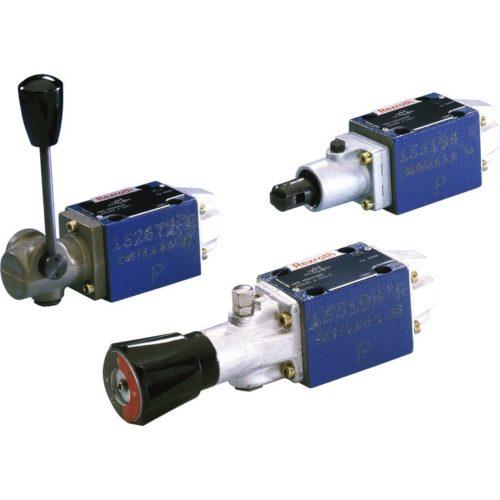

Bosch Rexroth WMR6 Directional Spool Valve

Bosch Rexroth WMR6 direct operated directional spool valves have mechanical or manual operation. They control the start, stop and direction of flow – connecting or isolating the connections by moving a control spool in a housing bore.

The valves have a maximum operating pressure of 315 bar and a maximum flow of 60 litres/minute.

Other features of the Bosch Rexroth WMR6 spool valves include:

• Size 6
• Component series 5X
• 4/3-, 4/2- or 3/2-way version
• Porting pattern according to DIN 24340 form A (without locating hole)
• Porting pattern according to ISO 4401-03-02-0-05 (with locating hole)
• Roller plunger actuation;
• Inductive position switch and contactless proximity sensors.
