Telescopic Hydraulic Cylinders

Multi-Stage Extension for Compact, High-Stroke Applications

Telescopic hydraulic cylinders are specialised multi-stage cylinders designed to deliver long strokes from a compact retracted length. By nesting multiple stages inside one another, these cylinders provide extended reach without requiring excessive installation space – making them ideal for mobile equipment and machinery where space is limited but high extension is essential.

At Hydraulics Online, we supply a wide range of telescopic hydraulic cylinders from trusted global manufacturers – with impartial advice to help you select the right cylinder for your application.

Our website shows only a selection of what we supply. For impartial advice and access to our full range of hydraulic components, contact our expert team.

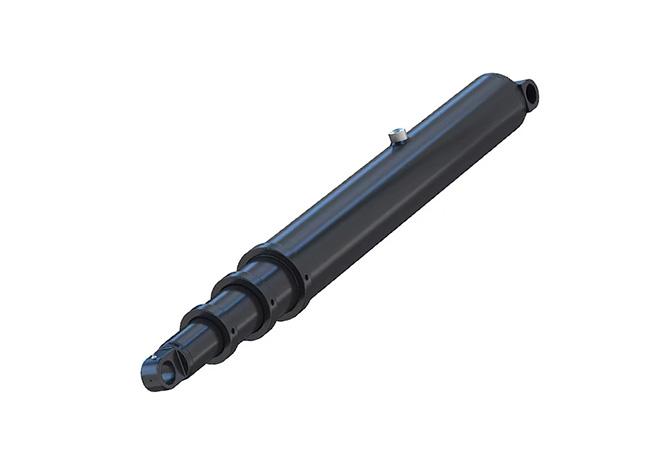

Telescopic hydraulic cylinders. For impartial advice and access to our full range of hydraulic components, contact our expert team.

Unlike standard single-stage cylinders, telescopic cylinders use multiple piston stages that extend sequentially.

Key features include:

Multi-stage design – available in 2, 3, 4, 5, or even 6 stages.
Compact retracted length – ideal for machinery with limited installation space.
Extended stroke capability – provides long extension relative to cylinder size.
Single-acting or double-acting options – single-acting cylinders are common, while double-acting designs are custom-built.
Durable construction – engineered for heavy-duty mobile and industrial applications.

Space efficiency – delivers long strokes without requiring large installation dimensions.
Versatility – suitable for lifting, tipping, pushing, and other mobile hydraulic functions.
Customisation – available in multiple stage configurations and pressure ratings.
High performance – designed to handle demanding loads and repetitive cycles.
Reliability – proven in industries where compact yet powerful actuation is required.

Telescopic cylinders are widely used in industries and applications including:

Construction machinery (dump trucks, loaders, cranes)
Agricultural equipment (harvesters, sprayers, trailers)
Mining and heavy industry vehicles
Waste management and recycling equipment
Mobile lifting and handling platforms

They are particularly valuable in systems where long extension and compact design are critical.

What makes telescopic cylinders different from standard cylinders? They use multiple nested stages to achieve long strokes from a compact retracted length.

Are telescopic cylinders more expensive than standard cylinders? Yes, due to their complex multi-stage design, they are generally more costly.

Can telescopic cylinders be double-acting? Yes, but double-acting telescopic cylinders must be specially designed and manufactured.
