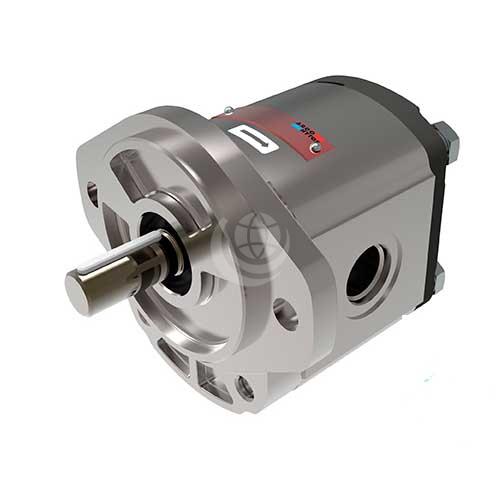

Argo Hytos GP2L Gear Pump

In both assembly and production, Argo Hytos work with a certified quality management system. This guarantees maximum product quality. Argo Hytos GP2L gear pumps (Lightline version) are a high quality aluminium (for durability), external gear pump with axial play compensation.

This series of gear pumps are for use in circuits with a lower – normal operating pressure. These gear pumps have identical displacement volumes as the respective models of the main series. However, Argo Hytos have developed the Lightline variants specifically for low operating pressure. For this reason, however, they are not suitable for operation with multiple arrangements like the main series.

The GP2L series is available in 14 displacements from 3 cc/rev to 30 cc/rev: GP2L 3 | GP2L 4 | GP2L 6 | GP2L 8 | GP2L 10 | GP2L 12 | GP2L 14 | GP2L 16 | GP2L 18 | GP2L 20 | GP2L 22 | GP2L 25 | GP2L 28 | GP2L 30

Across the range, the maximum continuous pressure is 270 bar and peak pressure is 300 bar. Minimum speed is 400 rpm, maximum is 4000 rpm.

These pumps have a volumetric efficiency of up to 96%

Download the Argo Hytos GP2L Technical Catalogue >>>

Contact us for further technical details and configuration options – our technical team will be delighted to help!
