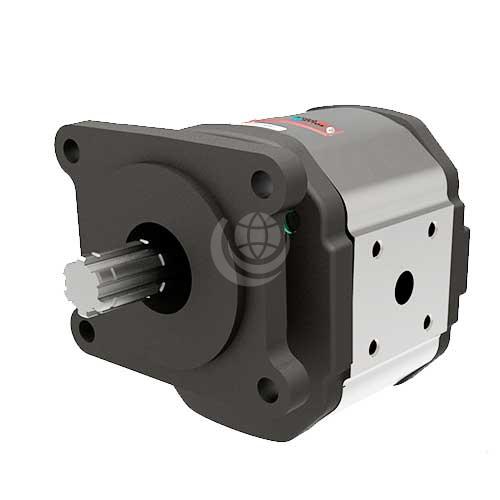

Argo Hytos GP3L Gear Pump

In both assembly and production, Argo Hytos work with a certified quality management system. This guarantees maximum product quality. Argo Hytos GP3L gear pumps (Lightline version) are a high quality aluminium (for durability), external gear pump with axial play compensation.

This series of gear pumps are for use in circuits with a lower – normal operating pressure. These gear pumps have identical displacement volumes as the respective models of the main series. However, Argo Hytos have developed the Lightline variants specifically for low operating pressure. For this reason, however, they are not suitable for operation with multiple arrangements like the main series.

The GP3L series is available in 11 displacements from 20 cc/rev to 71 cc/rev: GP3L 20 | GP3L 22 | GP3L 26 | GP3L 33 | GP3L 39 | GP3L 46 | GP3L 50 | GP3L 52 | GP3L 55 | GP3L 63 | GP3L 71

Across the range, the maximum continuous pressure is 250 bar and peak pressure is 280 bar. Minimum speed is 400 rpm, maximum is 3500 rpm.

These pumps have a volumetric efficiency of up to 96%.

Download the Argo Hytos GP3L Technical Catalogue >>>

Contact us for further technical details and configuration options – our technical team will be delighted to help!.
