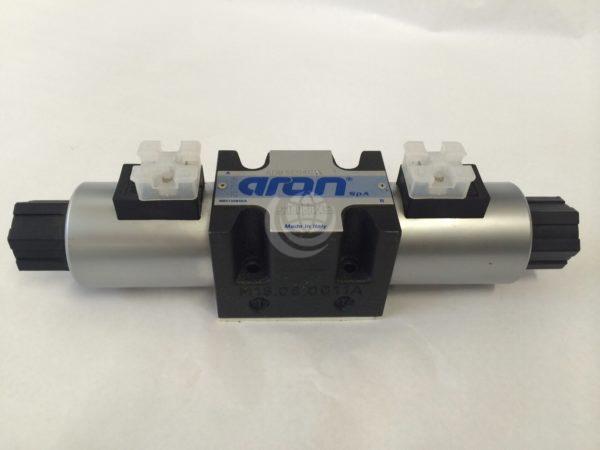

Aron ADB5E Cetop 05 valve 4/3 DC Coil ADB5E02CW002
Cetop 05 Valves – Double Solenoid
Aron ADB5E cetop 05 4/3 double solenoid directional control valve. Technical features and operating parameters for the ADB5E series are as follows:
Maximum pressure ports P/A/B: 350 bar, maximum pressure port T (DC coil): 250 bar, maximum pressure port T (AC coil): 160 bar, maximum flow: 100 litres/minute, maximum excitation frequency: 3 Hz, duty cycle: 100% ED, fluid viscosity: 10 to 500mm2/s, fluid temperature: -25oC to 75oC, ambient temperature: -25oC to 60oC.Valve ADB5E02CW002: spring centred, APO (all ports open), 12v / 24v DC.
Contact us for further technical details and configuration options.
