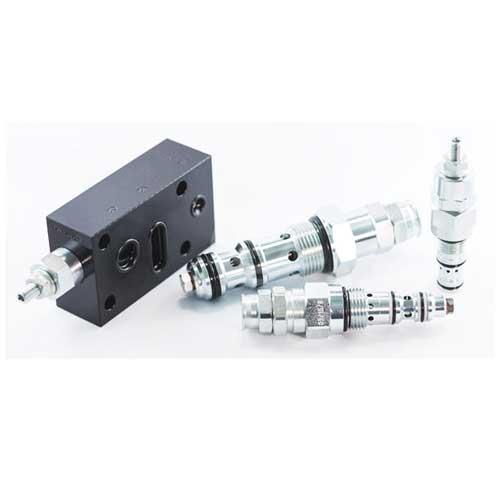

    Atlantic Fluid Tech Overcentre Valves

    Atlantic Fluid Tech Overcentre Valves

    Description

    Atlantic Fluid Tech overcentre valves have rated flows from 30 to 320 litres/minute, maximum pressures from 350 to 420 and cartridge, flanged or in-line installation.

    The range comprises:

    • Poppet type: CBSN-030-PARH
    • Differential area: CBSN-040-DCNH | CBSN-060-DCNH | CBSN-100-DCNH | CBSN-150-DCNH | CBSN-300-DCNH
    • Poppet type, differential area: CBSN-060-DARH | CBSN-060-DSRH | CBSN-120-DSRH | CBSN-120-DAGH | CBSN-240-DSGH | CBSN-320-DARH
    • Poppet type, fully compensated: CBST-030-PARH
    • Differential area, relief and pilot compensated: CBST-040-DCNH | CBST-100-DCNH | CBST-150-DCNH | CBST-300-DCNH
    • Single acting: MBSN-040-ALNP | MBSN-040-ZLNA | MBSN-060-ALNR | MBSN-060-ALNE | MBSN-060-ZLSE | MBSN-150-ALNV | MBSN-300-ZLNP | MBSP-150-ZLSE
    • Single acting, one flanged port: MBSN-040-AANP | MBSN-060-AANR | MBSN-060-AATV | MBSN-150-AANV
    • Single acting, two flanged ports: MBSN-060-ABNP | MBSN-150-ABNV
    • Single acting, all flanged ports: MBSN-040-ZDNA
    • Single acting, banjo mounting: MBSN-040-APNR
    • Single acting, in line ports: MBSN-060-ZLNA
    • Single acting, relief compensated: MBSP-060-ZLSE | MBSP-060-ALNP | MBSP-060-ALNE
    • Single acting, 1 flanged port, relief compensated: MBST-150-AANV
    • Single acting, 2 flanged ports, relief compensated: MBSP-060-ABNP
    • Single acting, 2 flanged ports, fully compensated: MBST-150-ABNV
    • Double acting: MBDN-040-ALNP | MBDN-040-ALNR | MBDN-040-ZLNN | MBDN-060-ALNR | MBDN-060-ALNR | MBDN-060-ZLDE | MBDN-100-ALDE | MBDN-150-ZLDE | MBDN-150-ZLNP | MBDN-300-ZLNR | MBDN-500-ABNR
    • Double acting, one flanged port: MBDN-040-AANR | MBDN-060-AANR
    • Double acting, two flanged ports: MBDN-040-ABNP | MBDN-040-ABNR | MBDN-040-ABNV | MBDN-040-ZBNN | MBDN-060-ABNR | MBDN-100-ABNR | MBDN-150-ZBNV
    • Double acting, all flanged ports: MBDN-040-ZDNA | MBDN-060-ZDNA
    • Double acting, relief compensated: MBDP-060-ALNR | MBDP-060-ZLDE | MBDP-150-ZLDE
    • Double acting, 2 flanged ports, fully compensated: MBDT-150-ZBNV

    Download the full technical catalogue here >>>

    Contact us for further technical details and configuration options across the range of Atlantic Fluid Tech overcentre valves.
