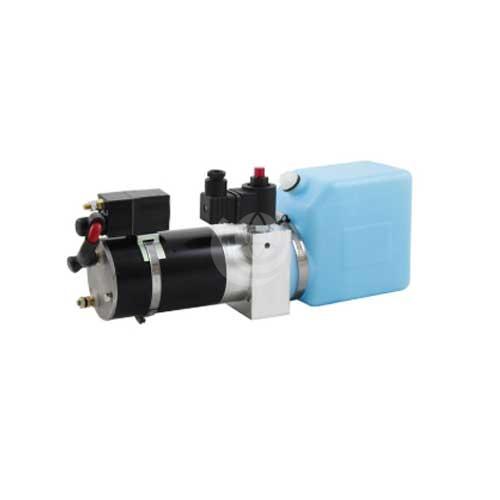

    Autopack Uni-Directional Power Pack

    Autopack Uni-Directional Power Pack

    Description

    The autopack uni-directional power pack is often called a “uni-pack”. It is much smaller than a mini power pack and ideal for applications using a small single-acting hydraulic circuit.

    It has a solid centre body with  an 08/20 valve cavity, allowing a variety of control valves to be fitted. The standard uni-pack centre plate can also accommodate an additional side module to add a manual hand-pump.

    Summary technical details are:

    • Motors: 12/24vDC, 150w to 800w
    • Pressure balanced gear pumps (cc/rev): 0.25 | 0.5 | 0.75
    • Tanks: 0.2 litres to 2.0 litres (specials available on request)
    • Pressure: 180 bar – 200 bar, flows up to 3.6 litres/minute

    Customised versions of the autopack uni-directional power pack are available for original equipment manufacturers.

    Contact us for further technical details and configuration options or to discuss custom design hydraulic power packs.

    Download the Autopack Unidirectional Power Pack Technical Catalogue >>>
