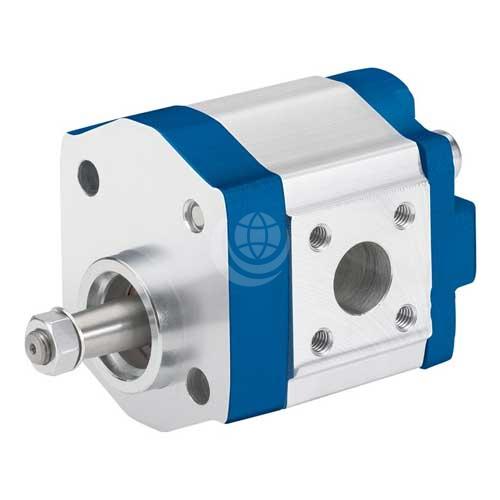

Bosch Rexroth AZMB Gear Motor


Bosch Rexroth AZMB motors are fixed displacement gear motors. They are designed asymmetrically – an optional reversible version is available for 2-quadrant and 4-quadrant operation.  These motors require a special start-up sequence to ensure good efficiency. Any leakage oil is drained internally; the shaft seal limits drainage pressure.

AZMB motors are available in displacement sizes: 2.5 | 3.1 | 4.0 | 4.5 | 5.0 | 6.3 | 7.1 cc/rev. Continuous pressure is up to 220 bar and intermittent pressure is up to 250 bar.

Other features of the Bosch Rexroth AZMB motor include:

  • Platform B;
  • Long service life;
  • Large speed range;
  • Slide bearings for high loads;
  • Variety of versions available;
  • Output shafts conform to ISO or SAE and customer-specific solutions;
  • Line connections: connection flange or screw thread;
  • High pressures with small installation space and low weight;
  • Large viscosity and temperature range.

Contact us for further technical details and configuration options.

Download the Bosch Rexroth AZMB Technical Catalogue >>>
