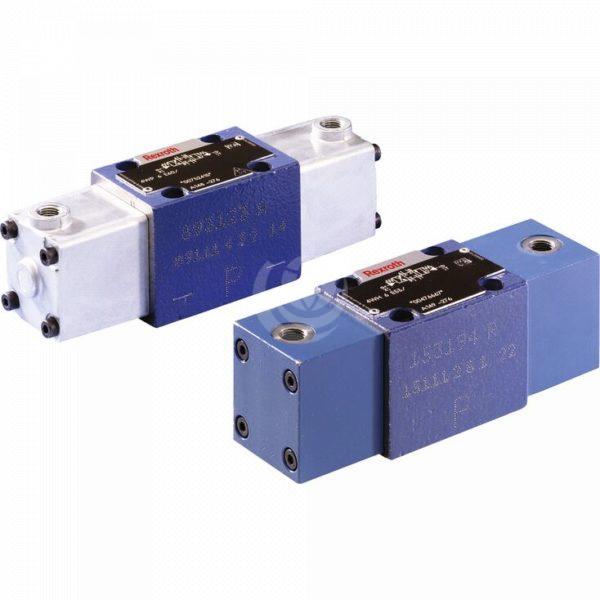

Bosch Rexroth WH 6 Directional Valve


Bosch Rexroth WH 6 is a direct operated, directional spool valve with hydraulic operation.

It controls the start, stop and direction of flow. Directional spool valves connect or isolate the connections by moving a control spool in a housing bore.

The valves have a maximum operating pressure of 315 bar and a maximum flow of 60 litres/minute.

Other features of the Bosch Rexroth WH 6 valve include:

  • Size 6
  • Component series 5X
  • 4/3-, 4/2- or 3/2-directional version;
  • ISO 4401 porting pattern;
  • Spool position monitoring.
  • Porting pattern according to DIN 24340 form A (without locating hole)
  • Porting pattern according to ISO 4401-03-02-0-05 (with locating hole)
  • Inductive position switch and contactless proximity sensors

Contact us for further technical details.
