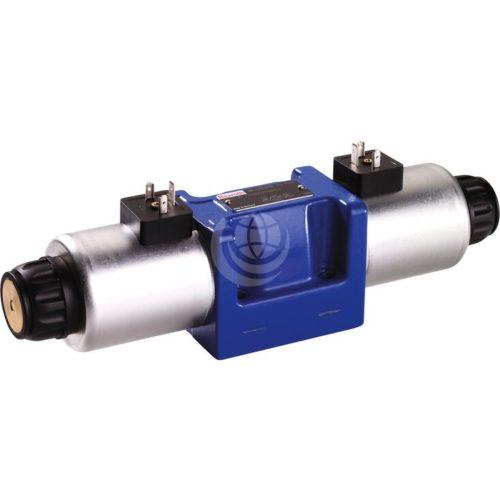

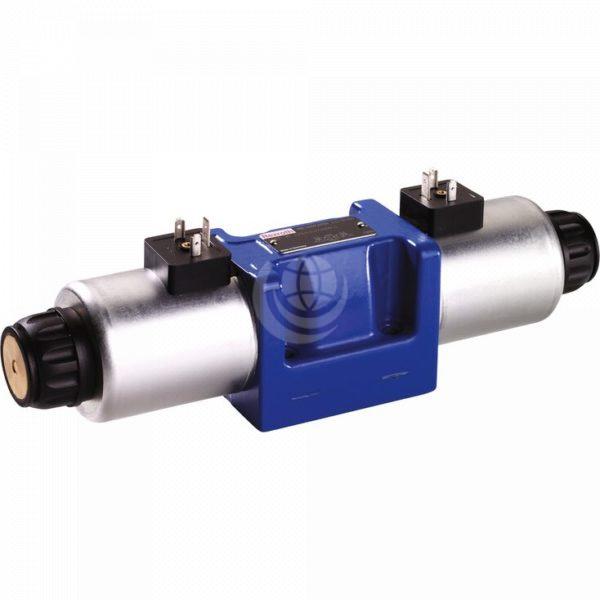

Bosch Rexroth WE 10 … E Directional Spool Valve


Bosch Rexroth WE 10 direct operated, directional spool valves have solenoid actuation. They control the start, stop and direction of the flow – connecting or isolating the connections by moving a control spool in a housing bore.

The valve has a maximum operating pressure of 350 bar and a maximum flow of 160 litres/minute.

Other features of the Bosch Rexroth WE 10 valve include:

  • Size 10;
  • Component series 5X;
  • 4/3-, 4/2- or 3/2-way version;
  • Porting pattern according to ISO 4401-05-04-0-05;
  • High-power solenoid, optionally rotatable by 90°;
  • Electric connection as single or central connection;
  • Use optionally with PWM connector (fast switching amplifier, energy reduction);
  • Optional auxiliary operating device;
  • CE conformity according to the Low-Voltage Directive 2006/95/EC for electrical voltages greater than 50v AC  or 75vDC;
  • Solenoid coil with UR approval UL 429.

Contact us for further technical details.
