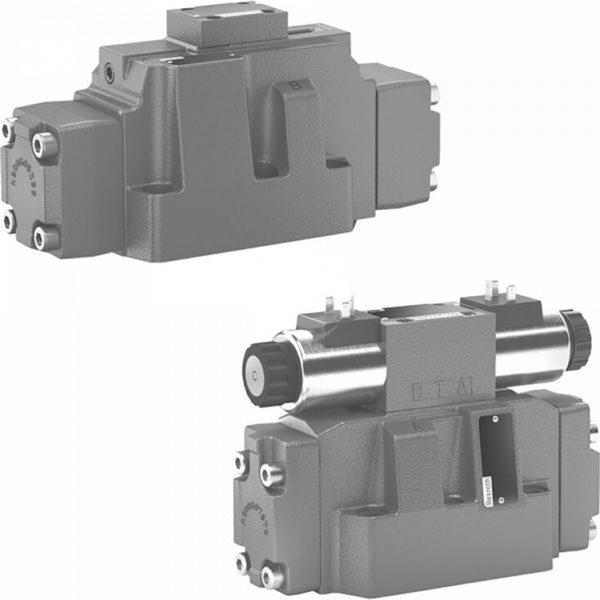

    Bosch Rexroth WEH Directional Spool Valve

    Description

    Bosch Rexroth WEH WH pilot operated directional spool valves have electro-actuation – while type WH have hydraulic actuation. They control the start, stop and direction of flow. Directional spool valves connect or isolate the connections by moving a control spool in a housing bore.

    The valves are available in sizes: 10 | 16 | 25 (WEH22) | 25 (WEH25) | 32. The valves have a maximum operating pressure of 350 bar and a maximum flow of 1100 litres/minute.

    Other features of the Bosch Rexroth WEH spool valves include:

    • Types of actuation (internal or external pilot control): WEH electro-hydraulic | WH hydraulic
    • Component series 4X | 7X | 6X
    • Types of actuation (internal or external pilot control): Electro-hydraulic (type WEH)
    • For subplate mounting;
    •  ISO 4401 porting pattern;
    • 4/3-, 4/2- or 3/2-way version
    • Spring or pressure centring, spring end position or hydraulic end position
    • Wet-pin DC or AC solenoids, optional
    • Electric connection as single or central connection
    • Additional options:
      • manual override;
      • switching time adjustment;
      • pre-load valve in channel P of the main valve;
      • stroke setting and/or spool position monitoring.

    Contact us for further technical details.
