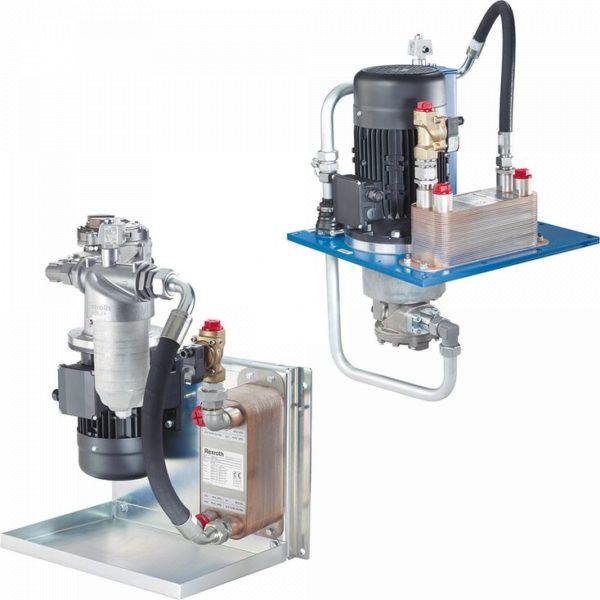

Bosch Rexroth Filter Cooler Unit with Inline Filter according to DIN24550 ABUKG
Filter cooler units are designed for filtering and cooling hydraulic fluids in the bypass circuit; meaning that the fluid flow passing through the filter element is always a low-pulsation flow, regardless of the system’s working cycle. This slows down the process of ageing and increases the hydraulic fluid life cycle. Treatment of the hydraulic fluid can be performed almost noiselessly using the Bosch Rexroth ABUKG-4X series filter cooler with external gear pump or screw spindle pump.
The Bosch Rexroth 4X series filter has a gerotor pump, external gear pump or screw spindle pump with electric motor frame size 90S – 132S. The filter has a low-pressure inline filter (filter rating 10 micron) according to DIN 24550 and a plate heat exchanger. Other features of the filter include:
- Compact unit with pump, installed low-pressure inline filter and plate heat exchanger;
- Modular design;
- Set-up as required with console or on installation plate;
- Low-noise version available (external gear pump or screw spindle pump).
Contact us for further technical details.
