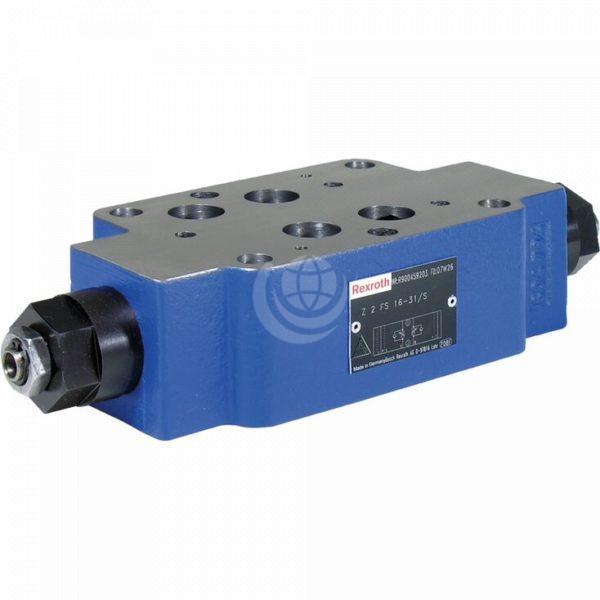

Bosch Rexroth Z2FS16 Throttle Check Valve


The Bosch Rexroth Z2FS16 throttle check valve has a sandwich plate design. It is used for the main or pilot flow limitation of one or two actuator ports. Two throttle check valves aligned symmetrically to each other limit flow in one direction and allow free return flow in the opposite direction.

The valve has a maximum operating pressure of 350 bar and a maximum flow 250 litres/minute.

Other features of the Bosch Rexroth Z2FS16 check valve include:

  • Size 16;
  • Component series 3X;
  • For supply or discharge, meter-in or meter-out throttling;
  • Porting pattern according to ISO 4401-07-07-0-05;
  • Flow limitation of 2 actuator ports;
  • Adjustment type: spindle with hexagon socket.

Contact us for further technical details.
