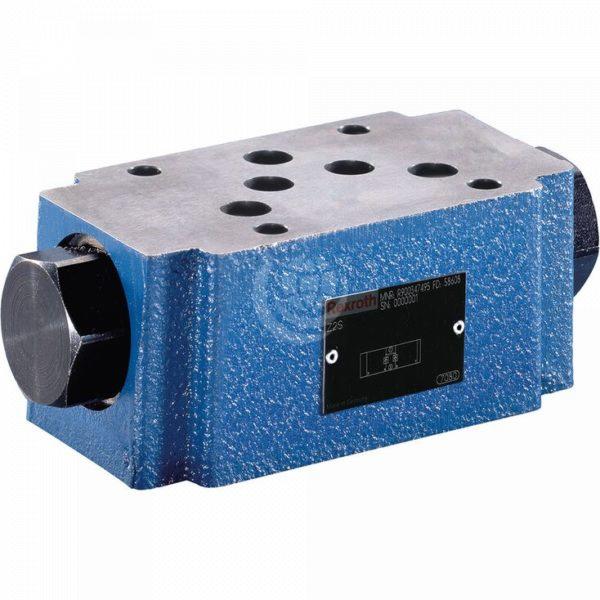

Bosch Rexroth Z2S 10 Check Valve


The Bosch Rexroth Z2S 10 valve is a pilot operated check valve. It has a sandwich plate design and is used for leakage-free blocking of one or two actuator ports – also during periods without operation. The two-stage structure provides increased control and an open ratio. Safe unloading is also possible with lower pilot pressure.

The valve has an operating pressure of 315 bar and a maximum flow of 120 litres/minute. Cracking pressures are: 1.5, 3, 6, and 10.

Other features of the Bosch Rexroth Z2S 10 check valve include:

  • Size 10, component series 3X;
  • Sandwich plate valve for vertical stacking;
  • Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05;
  • For the leakage-free blocking of one or two actuator ports, optional;
  • Various cracking pressures;
  • With pre-opening (as standard) or without pre-opening (optional);
  • Check valve installation sets available individually;
  • Corrosion-protected design.

Contact us for further technical details and configuration options.
