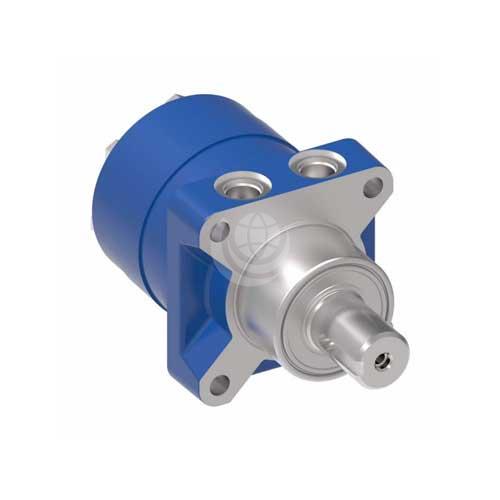

    Eaton Char-Lynn Delta Series Motors

    Eaton Char-Lynn Delta Series Motors

    Description

    The Char-Lynn Delta series motor provides continuous torques up to 1039 Nm and continuous flow of 75 itres/minute.

    It is suitable as a propel motor for applications such as: scissor lifts, boom lifts, mowers, turf care equipment, stump grinders and for auxiliary drive applications such as marine winches, trenchers, fishing winches and recycling equipment.

    Features:

    • Parking brake
    • Excellent reliability
    • Proven disc valve technology
    • Leak-resistant motor with the front bearing protecting the shaft seal
    • Shaft sizes up to 1-5/8 inch
    • 3-1/4 inch front pilot and 5 inch rear pilot
    • STC ports available

    The Delta series motor is available in 12 displacements from 113 cm³/rev to 754 cm³/rev:

    Delta Series Motors
    Displacement (cm³/rev)113146198234252300347395470542649754
    Max. Cont. Speed (rpm)668519382323300252218192161140117100
    Max. Int Speed (rpm)831778516485450379327288241209175151
    Continuous Flow (l/min)757575757575757575757575
    Intermittent Flow (l/min)95115115115115115115115115115115115
    Continuous Torque (Nm)3204295546517128449397210399941028985
    Intermittent Torque (Nm)417563725852930108712031206122220212531232
    Cont. Pressure (bar)205205205205205205205190170140120105
    Int. Pressure (bar)275275275275275275275240205170155140

    Download the Eaton Char-Lynn Delta Motor Technical Catalogue >>>

    Contact us now for technical advice and configuration options.
