Eaton Hydraulic Motors

Eaton hydraulic motors cover a wide range of mobile and industrial applications, from compact orbital motors for agricultural and construction machinery to high-pressure axial piston motors for demanding industrial drives.

The Eaton hydraulic motors range includes Char-Lynn orbital motors, DuraForce and Hydrokraft axial piston motors, M-series vane motors, and heavy-duty piston motors that now sit within the Danfoss Power Solutions portfolio following the 2021 acquisition of Eaton’s hydraulics business.

Eaton Motor Families

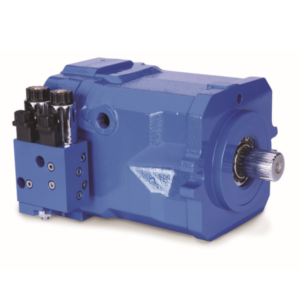

  • DuraForce HMV, HMR, HMA and HMF (Vickers by Danfoss): Axial piston motors with a compact design and a 21-degree maximum swash angle, suited to open and closed loop operations in mobile and industrial applications. Continuous pressure rating of 420 bar, peak 500 bar. – HMA (adjustable fixed displacement): HMA165, HMA210, HMA280 – HMF (fixed displacement): HMF028, HMF035, HMF050, HMF055, HMF063, HMF075, HMF105, HMF135 – HMV (variable displacement): HMV055, HMV075, HMV105, HMV135, HMV165, HMV210, HMV280 – HMR (regulated variable displacement): HMR075, HMR105, HMR135, HMR165, HMR210, HMR280

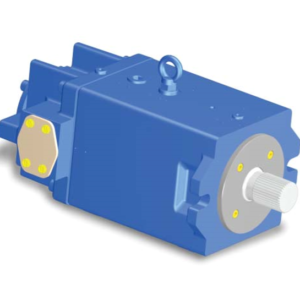

  • Hydrokraft MFX, MVX, MFW and MVW (Vickers by Danfoss): Axial piston motors engineered with the largest shaft bearings available, for full through-drive capability and long life in harsh operating conditions. Pressure rated up to 350 bar, rated speed up to 1800 rpm, and suited to a range of fluids including water-glycol. – MFX / MVX (X-series, fixed and variable displacement): 66 to 180 cc/rev, engineered for steel mill applications – MFW / MVW (W-series, fixed and variable displacement): 250 to 750 cc/rev, engineered for marine, offshore and oil and gas applications

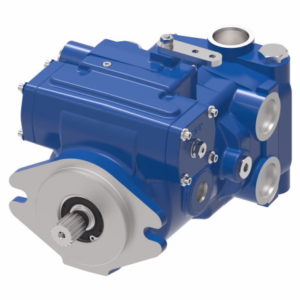

  • Eaton Heavy-Duty Piston Motors: Series 1 fixed and variable displacement piston motors with a cast-iron housing and fixed-clearance slipper design for long service life.

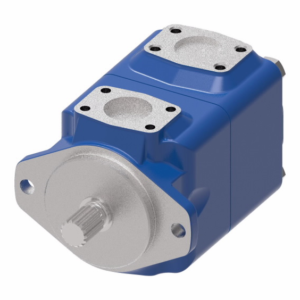

  • Eaton M-Series Vane Motors: A variable speed and rotary hydraulic power motor with diametrically opposed inlet and outlet chambers to reduce wear and a dual-pressure plate for operational efficiency. Used in plastic injection moulding machines, conveyors and similar applications.

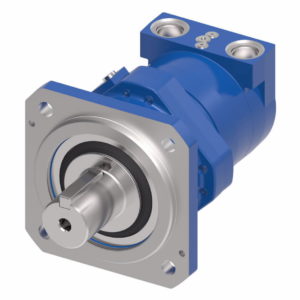

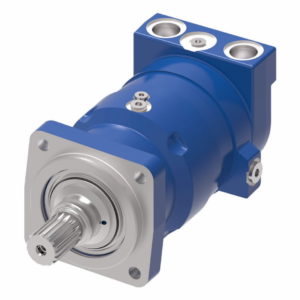

  • Eaton Char-Lynn VIS 40 / 45 Motors: Heavy-duty, low-speed, high-torque (LSHT) motors for closed-loop applications, compact and sturdy, with higher pressure capabilities and improved efficiency compared with other LSHT motors.

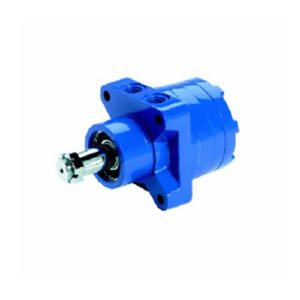

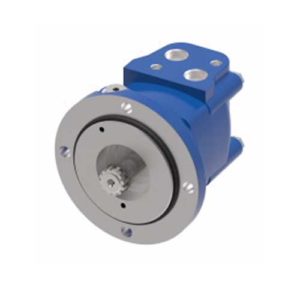

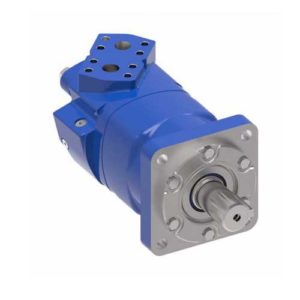

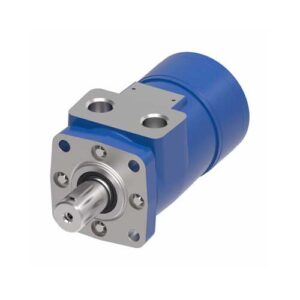

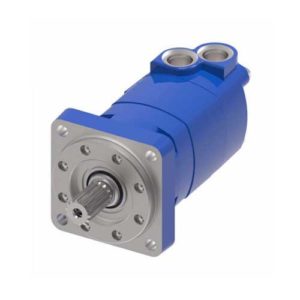

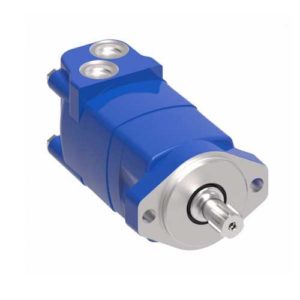

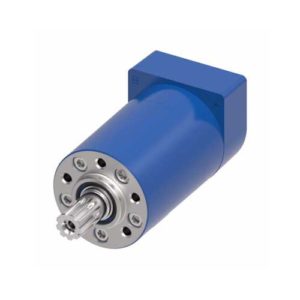

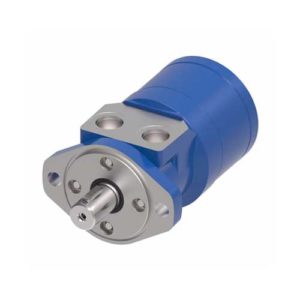

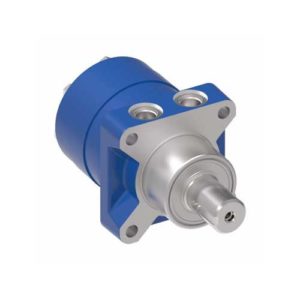

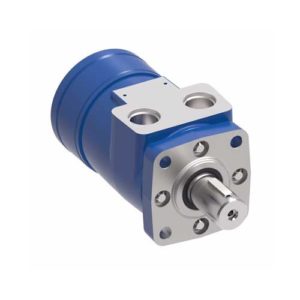

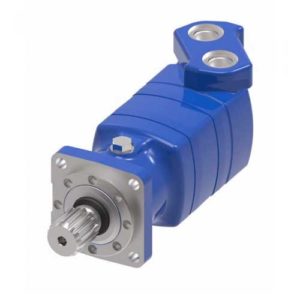

  • Char-Lynn Orbital Motors: Char-Lynn Gerotor and Geroler orbital motors, including the J, H, S and T spool valve series and the 2000, Delta, 4000, 4000 Compact, 6000 and 10000 disc valve series. Char-Lynn motors carry their own dedicated range overview on the Char-Lynn brand page, where the full series and model breakdown is listed.

For a further range of motors from the same group as Eaton, please visit our Danfoss Hydraulic Motors page.

Typical Applications

  • Construction and civil engineering machinery
  • Agricultural equipment and harvesters
  • Forestry machinery
  • Material handling and logistics equipment
  • Industrial manufacturing and plastic injection moulding
  • Marine winches and offshore equipment
  • Oil and gas drilling equipment
  • Pulp and paper and primary metals processing
  • Turf care and groundscare equipment

Our website shows a selection of the Eaton hydraulic motors we supply. If you cannot find what you need or would like impartial advice on the right specification for your application, please contact our team – we source globally and will still be able to help.
