Description

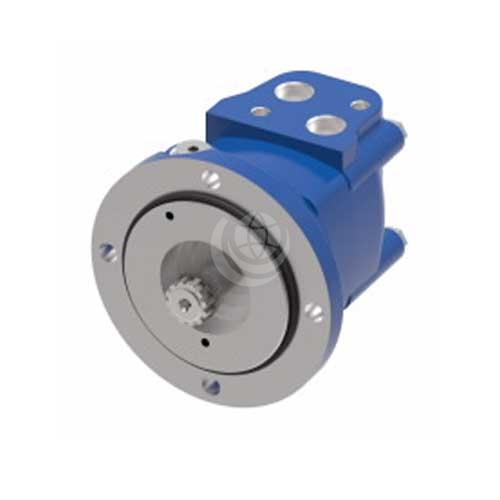

Eaton Char-Lynn 2000 Series motors have a two-speed feature that changes the displacement in a ratio of 1 to 2, and shifts the motor from a low speed high torque (LSHT) mode to a high speed low torque (HSLT) mode.
In the high speed mode, torque values are approximately half with twice the speed of conventional 2000 Series single speed motors.
In normal LSHT operation, the two-speed Char-Lynn motor will function with equal shaft output in either direction (clockwise or counter-clockwise) – the same as the single speed Char-Lynn disc valve motors. To prevent cavitation in the HSLT mode, the preferred direction of shaft rotation is counter-clockwise (port B pressurised).
Char-Lynn 2000 two-speed series motors are available in 9 high speed and low speed displacements:
| Displacement (cm³/rev) - High Speed Mode | 40 | 50 | 65 | 80 | 95 | 120 | 155 | 195 | 245 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Displacement (cm³/rev) - Low Speed Mode | 80 | 100 | 130 | 160 | 195 | 245 | 305 | 395 | 490 | ||||
| Max. Cont. Speed (rpm) - High Speed Mode | 1000 | 1000 | 990 | 860 | 700 | 560 | 450 | 350 | 230 | ||||
| Max. Cont. Speed (rpm) - Low Speed Mode | 500 | 500 | 495 | 430 | 350 | 280 | 225 | 175 | 115 | ||||
| Flow (l/min) - High Speed Mode | 45 | 55 | 70 | 75 | 75 | 75 | 75 | 75 | 75 | ||||
| Flow (l/min) - Low Speed Mode | 45 | 55 | 70 | 75 | 75 | 75 | 75 | 75 | 75 | ||||
| Continuous Torque (Nm) - High Speed | 100 | 125 | 165 | 195 | 240 | 300 | 380 | 365 | 448 | ||||
| Intermittent Torque (Nm) - High Speed | 145 | 185 | 240 | 240 | 300 | 375 | 440 | 445 | 486 | ||||
| Continuous Torque (Nm) - Low Speed | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 | ||||
| Intermittent Torque (Nm) - Low Speed | 345 | 445 | 560 | 570 | 665 | 82 | 885 | 925 | 930 | ||||
| Cont. Pressure (bar) | 205 | 205 | 205 | 205 | 205 | 205 | 205 | 155 | 120 | ||||
| Int. Pressure (bar) | 310 | 310 | 310 | 260 | 260 | 260 | 240 | 190 | 140 | ||||
Download the Char-Lynn 2000 Series Technical Catalogue >>>
Contact us now for technical advice and configuration options.
