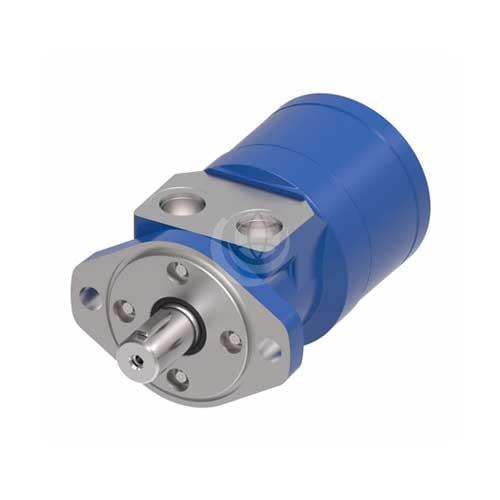

Eaton Char-Lynn S Series Motors

Eaton Char-Lynn S Series motors feature the latest innovations in geroler technology. These innovations include enhanced performance with reduced drive-running angle while retaining the overall package size of the original S series.

The geroler set has precision machine rollers in the outer ring which provide support with rolling contact between the star and ring. This improves mechanical efficiency, especially at start-up and at low speed conditions.

Improvements incorporated into the latest S Series motor provide reliable leak-free performance and smooth operation at start-up conditions.

The motor is available in 10 displacements: 59 | 75 | 97 | 120 | 144 | 166 | 187 | 225 | 298 | 372 cc/rev.

Other features of the Eaton Char-Lynn S series motor include:

• Continuous flow of 57 litres/minute;
• Intermittent flow from 68 – 76  litres/minute;
• Maximum speed of 963 rpm;
• Maximum continuous pressure 138 bar, 2000 psi;
• Intermittent pressure 172 bar, 2500 psi;
• Maximum continuous torque 369 Nm / intermittent 438 Nm;
