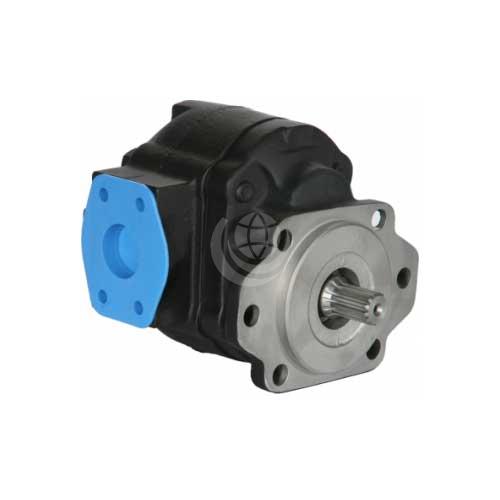

Hydreco 1900 Series Gear Pumps and Motors

Description

Hydreco 1900 series gear pumps and motors are made of cast iron. They have a very rigid, doweled two-piece construction. The pump contains pressure-balanced wear plates with a design that delivers high overall efficiency.

The 1900 series is available in 5 gear width sizes (05, 07, 09, 11, 13 and 16) with displacements as follows: 1905 – 22 cc/rev | 1907 – 33.43 cc/rev | 1909 – 41.5 cc/rev | 1911 – 51.8 cc/rev | 1913 – 62.10 cc/rev | 1916 – 74.20 cc/rev.

Rated to 210 bar, Hydreco 1900 pumps have a speed range from 600-2700 rpm. Meanwhile, as motors, the maximum speed is 3000 rpm.

Contact us for further technical details and configuration options.
