    Hydreco WSP Gear Pumps

    Description

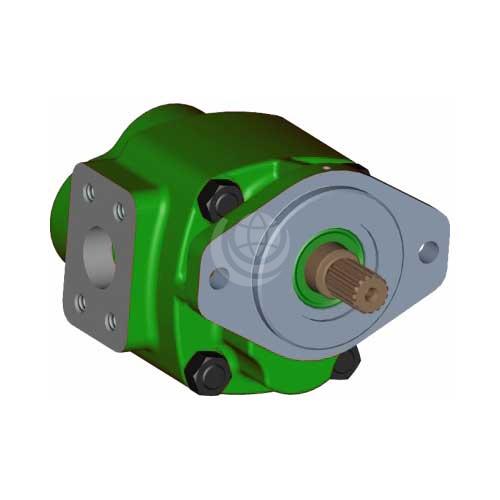

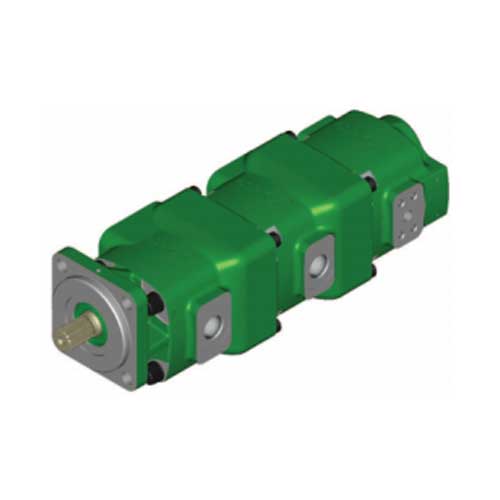

    Hydreco WSP gear pumps (World Series Pumps) are quiet and robust cast iron gear pumps. They are designed for mobile machinery applications.

    Fomerly made under the names of Hamworthy and then David Brown Hydraulics, Hydreco WSP pumps reduce the amount of fluid borne noise generated by the pump – and hence transmitted into the hydraulic system and wider working environment.

    These pumps are highly efficient and are designed to provide high performance levels and long life when operated within their rating parameters.

    There are two series, WSP40 and WSP50:

    • WSP40 series: from 12 cc/rev to 50 cc/rev and up to 350 bar (5075 psi) rated pressure, 360 peak with a speed range of 450 to 3000 rev/minute across all models. Teh series model codes and displacements are: WP4012 | WP4014 | WP4016 | WP4019 | WP4022 | WP4025 | WP4028 | WP4031 | WP4034 | WP4038 | WP4042 | WP4046 | WP4050
    • WSP50 series: from 20 cc/rev to 88 cc/rev and up to 350 bar (5075 psi) rated pressure, 360 bar peak with a speed range of 450 to 3500 rev/min across all models. The series model codes and displacements are: WP5020 | WP5023 | WP5027 | WP5030 | WP5033 | WP5036 | WP5040 | WP5046 | WP5053 | WP5057 | WP5064 | WP5074 | 5088

    Download the Hydreco WSP40 and Hydreco WSP50 series technical catalogues >>

    Contact us for further technical details and configuration options.
