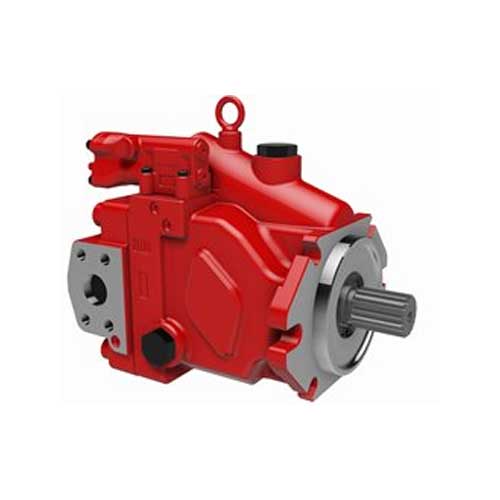

Kawasaki K3VLS Axial Piston Pumps


Kawasaki K3VLS pumps are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications and industrial vehicles with medium pressure hydraulic systems.

They enable flexible configuration in a wide range of applications with their compact size and lightweight design and are available in displacements ranging from 50 to 150 cm³/rev:

K3VLS Model 506585105125150
Displacement (cc/rev)506585105125150
Rated Pressure (Mpa)282828282828
Peal Pressure (Mpa)353535353535
Self-Prime Speed (rpm)270026002500230022002200
Maxium Speed (rpm)325030003000264024002400
Weight (kg)212531375452

Other features include:

  • High overall efficiency
  • Compact size
  • Light weight
  • Excellent reliability
  • Numerous control options
  • High stability
  • Highly responsive controls

Contact us for further technical details and configuration options.

Download the Kawasaki K3VLS Technical Catalogue >>>
